BODOR M5C 20 kW Fiber Laser Tube Cutting Machine
Have one to sell?
ConditionNew
New

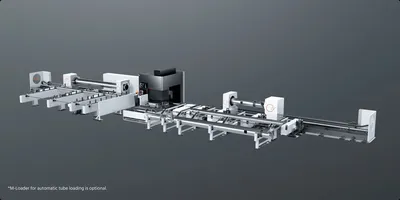

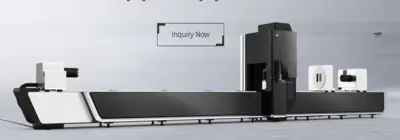

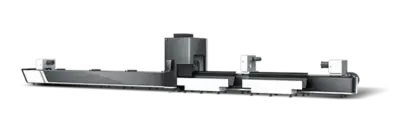

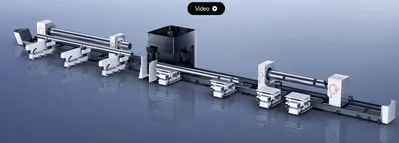

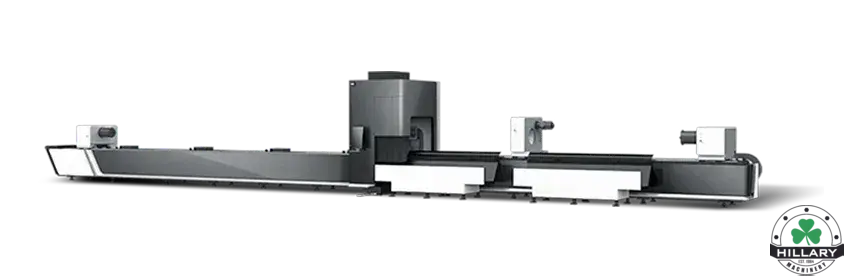

The Bodor M5C Fiber Laser Tube Cutting Machine is a flagship heavy-duty tube laser system engineered for high-volume production, extreme precision, and fully automated tube processing. Designed around Bodor’s advanced four-chuck technology, the M5C delivers true zero-waste cutting while dramatically increasing throughput, making it one of the most efficient tube laser platforms in the industry.
Built for demanding fabrication environments, the M5C is capable of processing round, square, rectangular, angle, and channel material with exceptional accuracy and stability. Its intelligent four-chuck system allows simultaneous loading, cutting, and unloading operations, eliminating downtime between cycles and maximizing machine utilization. With ultra-short remnant capability and automatic material handling, the M5C helps shops reduce scrap, labor costs, and secondary operations.
The M5C handles large structural tubing with capacities up to 530mm diameter and tube lengths up to 12 meters, making it ideal for industries such as structural steel, oil & gas, aerospace, heavy equipment, agriculture, transportation, and industrial fabrication. Available in high-power configurations up to 20kW, the machine can process thick-wall tubing and complex bevel cuts with ease.
"Round tube 2"- 20"
Square tube 2" - 20"
Rectangular tube
3"≤Side length≤20"
angle steel 8#-25#
channel steel 8#-40#"
Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel, I-beam, H-beam
Max Machinable Tube Length - 41'
Max Tube Weight - 5511 LBS
No Waste of Material
Laser Source - Bodor Power
Chuck - Pneumatic
# of Chucks - 4
Power Requirements - 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement)
Positioning Accuracy - 0.002"
Repositioning Accuracy - 0.001"
Max Chuck Rotation Speed - 75r/min
X Axis Maximum Speed - 3149.6"/min
Y Axis Maximum Speed - 2362.2"/min
X Axis Maximum Acceleration - 1G
Y Axis Maximum Acceleration - 0.6G
Z Axis Maximum Speed - 2362.2"/min
