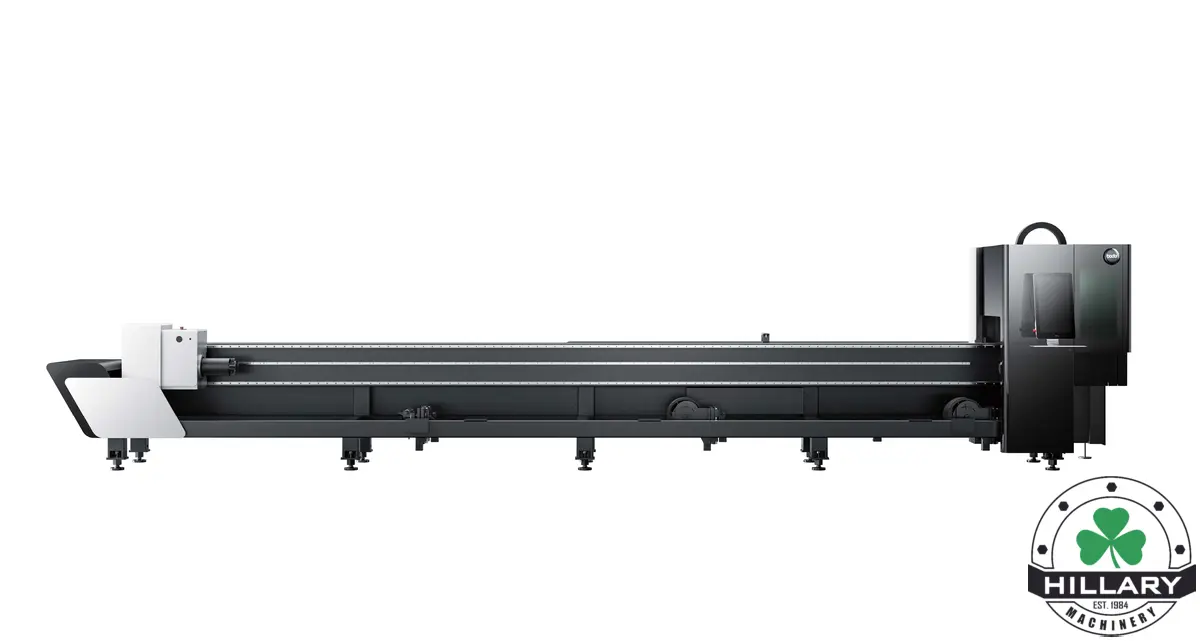

BODOR K2-92
Have one to sell?
ConditionNew
New
Bodor Laser has launched the K Series laser tube cutting machine to address the issue of high operational barriers in the market. This machine integrates features such as high-speed chucks, fast clamping response in 2S, ultra-short tail material, and a one-click start. It is designed to provide a simple, safe, and environmentally friendly tube cutting solution.
6000 kW Laser Head
Tube Cross-Sectional Shape (Round, Square, Rectangular, oval, rounded rectangular, angle steel, channel steel, and other tubes)
Laser Head - Bodor Genius T
Laser Source - Bodor Power
Maximum Tube Length - 30'
Maximum Tube Weight - 661 LBS
Requirements for tube - Diamater 9"
Shortest remaining material - 40mm
Control System - Bodor Thinker
Display Size - 21.5 inches touch screen
Water Chiller - Yes
Dust Removal - centrifugal fan
File Format - IGS, DXF, G Code, DWG
Power Requirements - 220V/440V/480V 60HZ 3PHASE(Up to Clients Power requirements)
Positioning Accuracy - .05mm/m
Repositioning Accuracy - .03mm
Max. Chuck rotating speed 130r/min
X Axis Maximum Speed - 3543"/min
Y Axis Maximum Speed - 2362"/min
X Axis Maximum Acceleration - 1G
Y Axis Maximum Acceleration - 1G
Z Axis Maximum Speed - Less than or equal to 1968.5"/min
