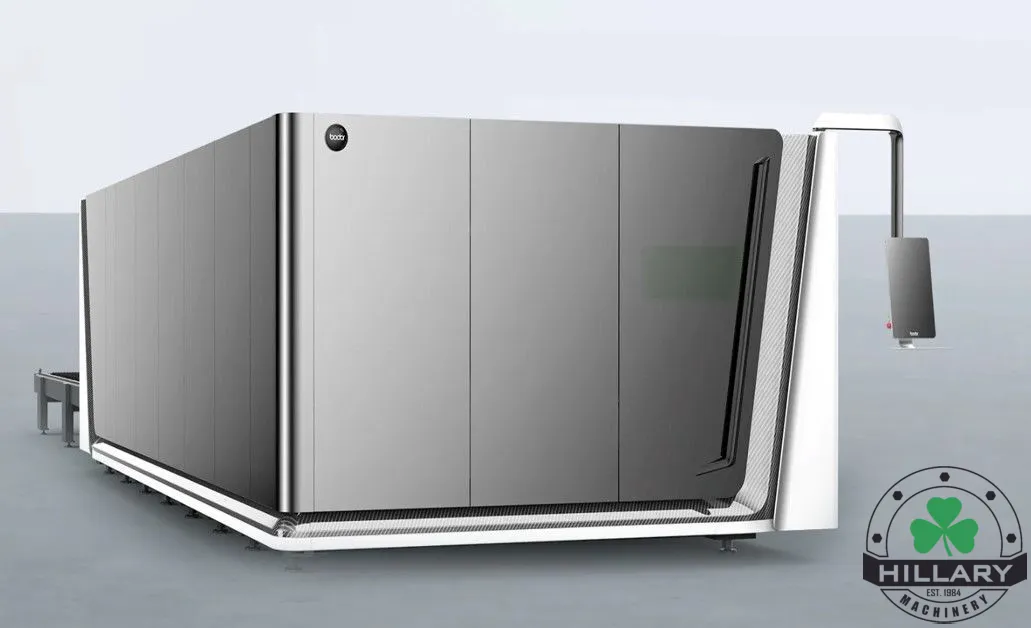

BODOR C3 6 kW Fully Enclosed Plate Laser

Basic Parameter
Working area 3048mm*1524mm (10'x5')
Max. linkage speed 200m/min
Laser head BodorGenius
Laser source BodorPower
Machine bed Tenon and mortise structure bed
Gantry structure Stretched Aluminum gantry
X-axis、Y-axis、Z-axisServo motor and driver Bodor
Linear Rails Bodor
Rack Bodor
Protective Enclosure Yes
Integral aluminum cantilever for high pressure steel mould casting Yes
Control system BodorThinker
Display size 21.5 inches
Intelligent alarm
Water Chiller
Total power capacity/current with 12KW source--107.4kVA/163.2A
Intelligent function
One-click processing
Remnant Typesetting
One-second edge search
Visual collision detection
Bodor Lightning perforation technology
High Speed Cutting Expert Database
Automatic nozzle changer 8 Nozzles
Automatic nozzle cleaning
Touchscreen Display
Air pressure intelligent control 12KW and above
Automatic adjustment of cutting gas pressure 3KW and above：O2、N2、air
Auto-focus of laser head
Laser cutting technology expert database
Ergonomic Remote Control (Bodor Mango®)
Active anti-collision function
intelligent over-heat adaptation 12KW and above
Intelligent anti-shake
High quality Cutting Expert Database
Mineral casting anti burning 1.5KW and above
Gas-saving steady flow nozzle
Intelligent maintenance reminder
WIFI internet connection
Bodor Cloud service

Performance
Requirements for sheet Plate thickness ≥0.8mm
Max. acceleration 2.5G
Table load bearing - 2,414 LBS
Z axis travel 320mm
Positioning accuracy ±0.05mm/m
Repositioning accuracy ±0.02mm
φ30mm roundness ≤0.15mm
□30mm adjacent side dimension difference ≤0.06mm
□190mm adjacent side dimension difference ≤0.15mm
□190mm diagonal size difference ≤0.20mm
