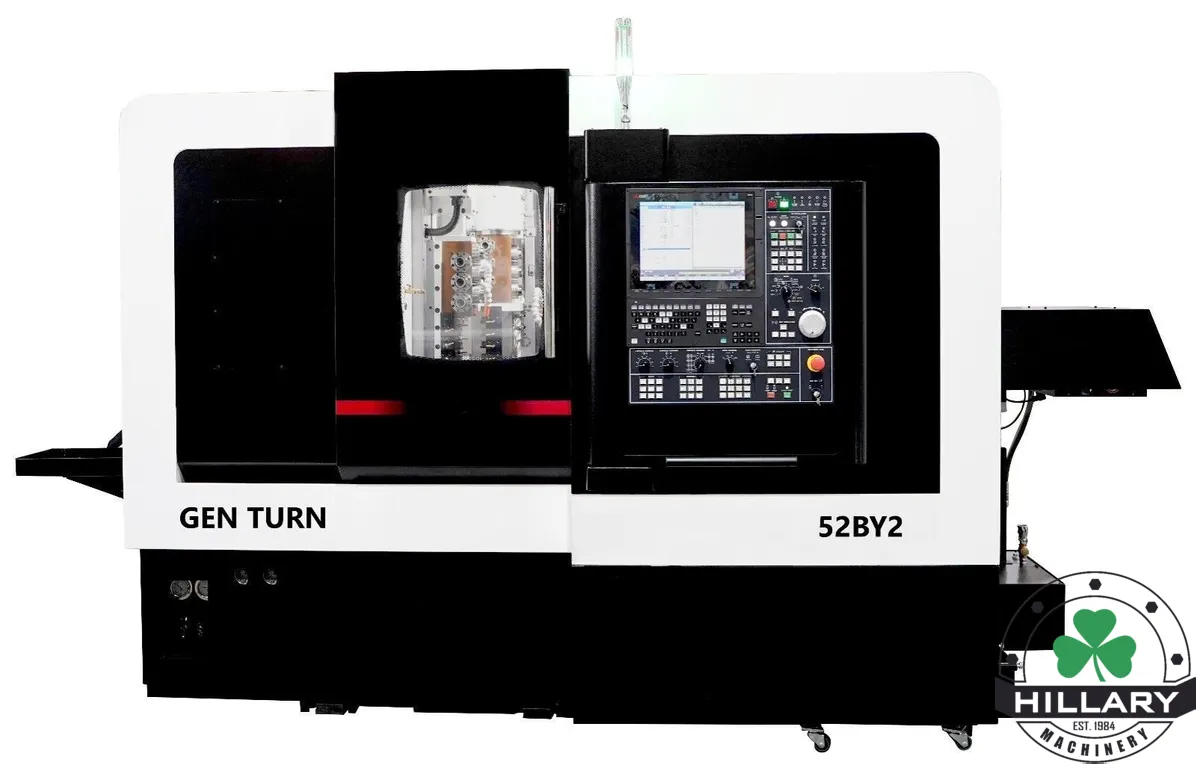

GEN TURN 52-BY2 Dual Spindle CNC Turn/Mill Center

Description

The GEN TURN 52-BY2 is an advanced multitasking 52 mm (2”) bar capacity CNC mill/turn lathe suitable for machining complicated parts. The machine features integral (built-in “beltless”) motorized spindles for the main and subspindle. The main spindle and sub spindle can machine simultaneously for increased operational machining efficiency. The machine features ample tooling to complete the part in a single operation, or to have multiple parts setups on the machine. The machine features 36 tool positions with 18-driven tools that use ER-20 ½” capacity collets. The 18-colleted spindles are included with the machine.

The main spindle tooling can position in 5-axis (B, C, X, Y, Z) and use up to 21-tools. The B-axis tooling unit houses

12-driven tools supported in ER-20 collet chucks, and 5-OD 20 mm tools and 5-fixed 25 mm ID tool positions.

The subspindle can also position in 5-axis (B, C, X, Y, Z) by using the B-axis tooling unit. It also has its own exclusive tools consisting of 3-radial live tools, 3-axial live tools, 4-fixed OD tools, and 4-fixed ID tools for a total of 14-tools, with 6-driven tools exclusive to the subspindle for simultaneous production machining efficiency.

INCLUDES:
Mitsubishi M830 High-Performance CNC Control
9-Axis Mill/Turning Center with B-Axis
Dual “Y” Axis & “C” Axis
2-Traub-52 “Dead-Length” collet chucks
Automatic power shutdown.
36-Tool positions including 18-ER-20 Driven Tools with 12 B-Axis “Any-Angle” Tools
Parts catcher with parts conveyor
Barrel-height chip conveyor
Work light
Bar loader interface
Headwall air blast and coolant outlets for main and sub spindle
Sub-Spindle programmable air blast
Oil flush
Finished parts ejector
Coolant oil chiller unit – controls oil temperature for close tolerance work
Four 1-HP coolant pumps for headwall & chip flush with coolant flow sensor monitoring.
