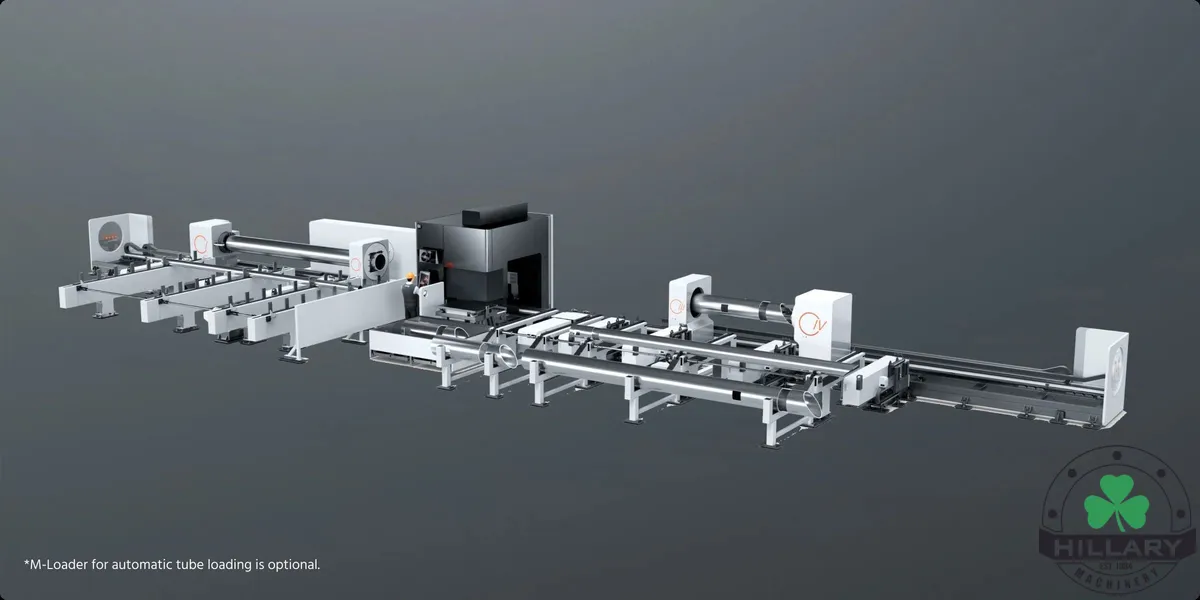

The Bodor M5C Tube Laser is a flagship heavy-duty fiber tube cutting system built for high-volume production, precision, and fully automated material handling. Equipped with a 40’ infeed and 21’ outfeed automation system, the M5C delivers true lights-out manufacturing with seamless automatic loading, cutting, and unloading of tube and pipe materials. Its advanced 4-chuck design allows for near-zero material waste while maintaining exceptional accuracy and stability on long or heavy tube applications.
Designed for fabricators demanding maximum throughput, the M5C handles round, square, rectangular, and complex profiles with ease while offering simultaneous processing functions that keep production moving continuously. Intelligent servo-driven loading and unloading automation reduces labor requirements, minimizes downtime, and increases overall shop efficiency. With cutting capacities up to 20"+ diameter tubing and the ability to process long, heavy materials, the M5C is ideal for structural steel, oil & gas, heavy equipment, transportation, and large-scale fabrication operations.
Powered by Bodor’s high-speed fiber laser technology and intelligent control software, the M5C delivers fast cycle times, superior edge quality, bevel cutting capability, and unmatched repeatability — making it one of the most advanced automated tube laser systems on the market today.
"Round tube 2"- 20"
Square tube 2" - 20"
Rectangular tube
3"≤Side length≤20"
angle steel 8#-25#
channel steel 8#-40#"
Round, square, rectangular, oval, rounded rectangular, Angle steel, channel steel, I-beam, H-beam
Max Machinable Tube Length - 41'
Max Tube Weight - 5511 LBS
No Waste of Material
Laser Source - Bodor Power
Chuck - Pneumatic
# of Chucks - 4
Power Requirements - 220V/440V/480V 60HZ 3PHASE (Up to Clients Power Requirement)
Positioning Accuracy - 0.002"
Repositioning Accuracy - 0.001"
Max Chuck Rotation Speed - 75r/min
X Axis Maximum Speed - 3149.6"/min
Y Axis Maximum Speed - 2362.2"/min
X Axis Maximum Acceleration - 1G
Y Axis Maximum Acceleration - 0.6G
Z Axis Maximum Speed - 2362.2"/min
