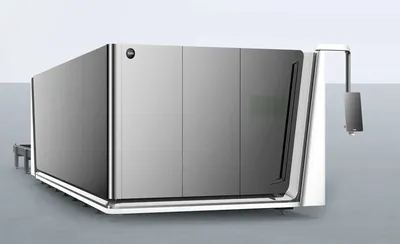

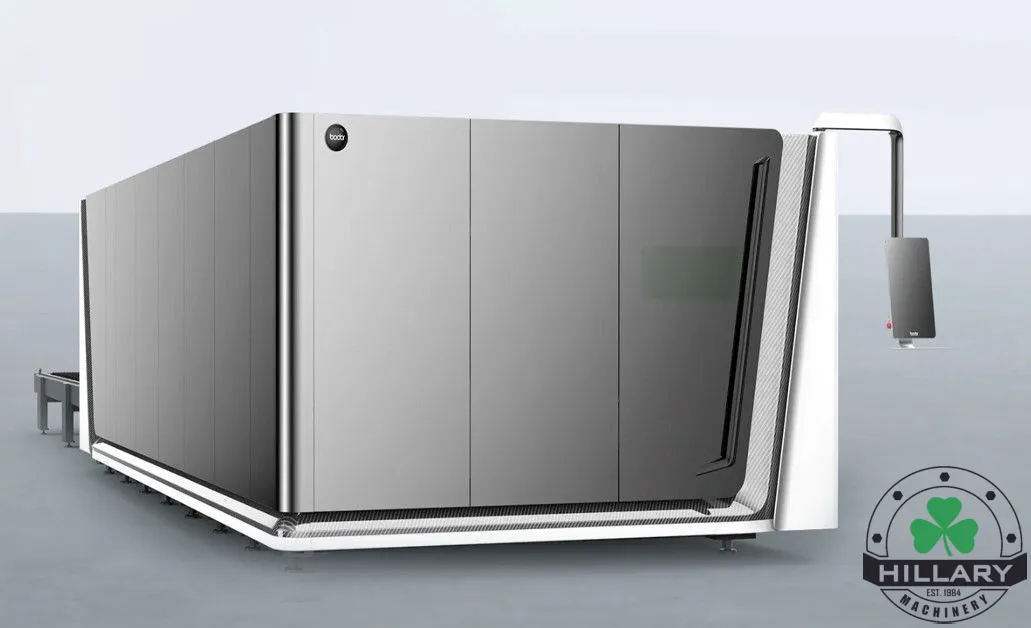

BODOR P6 20kW Sheet Laser Cutting Machine

Precitec Laser Head
Max. acceleration - 2.8G
Table load bearing - 11,250 LBS
Z axis travel - 370mm
Positioning accuracy - ±0.05mm/m
Repositioning accuracy - ±0.03mm
φ30mm roundness - ≤0.15mm
□30mm adjacent side dimension difference - ≤0.06mm
□190mm adjacent side dimension difference - ≤0.15mm
□190mm diagonal size difference - ≤0.20mm

One-click processing
Remnant Typesetting
One-second edge search
Visual collision detection
Bodor Lightning perforation technology
High Speed Cutting Expert Database
Automatic nozzle changer
Automatic nozzle cleaning
Touchscreen Display
Air pressure intelligent control - 12 kW & above
Automatic adjustment of cutting gas pressure - 3KW and above：O2、N2、air
Auto focus of Laser head
Laser cutting technology expert database
Ergonomic Remote Control (Bodor Mango®)
Active anti-collision function
intelligent over-heat adaptation
Intelligent anti-shake
High quality Cutting Expert Database
Mineral casting anti burning - 1.5 kW & above
Gas-saving steady flow nozzle
Intelligent maintenance reminder
WIFI internet connection
Bodor Cloud service
