Equipment
MACHINING CENTERS
Bridge & Gantry Mills

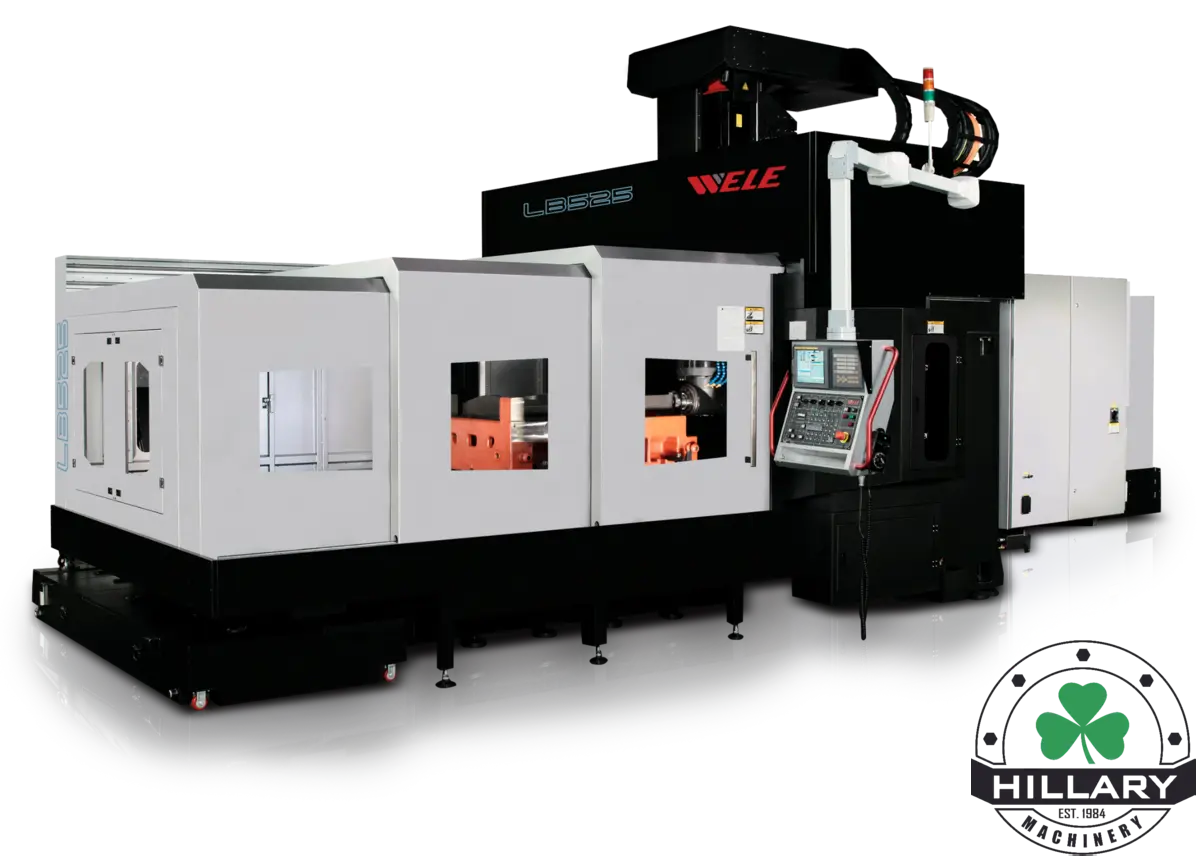

LB525YM 5 Face Double Column Vertical Machining Center

LB525YM 5 Face Double Column Vertical Machining Center

Have one to sell?
877-741-4392
sales@hillaryllc.com
ConditionNew
Have one to sell?

Overview

Type:
Bridge & Gantry Mills
Manufacturer:
JTEKT
Model:
LB525YM
Condition:
Build To Order
Status:
For Sale

Description

LB525YM 5 Face Double Column Vertical Machining Center with Fanuc 31iMB CNC

Standard Features:

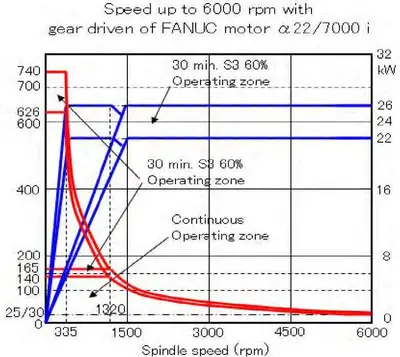

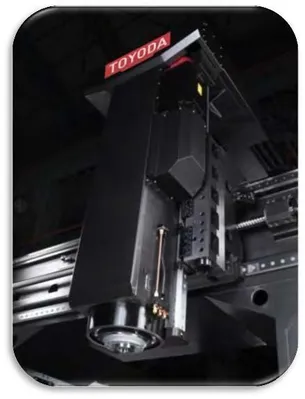

CT50 Spindle, 6,000 RPM 30/35 hp 2 Speed Geared Head (626.2 Nm 461 ft-lb Torque) Standard

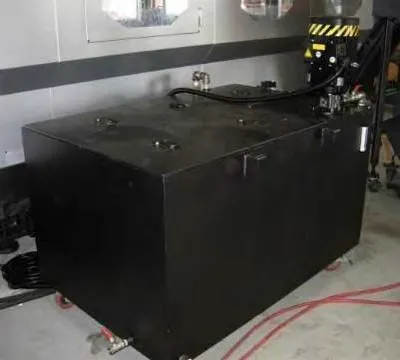

Standard Hinge Belt Conveyor (47" Discharge Height), Coolant Tank, Flood Pump
Big Plus Spindle Taper
Bell Shaped Acc/Dec control
Machine Condition Selection Function (Selection 1-10 of High Speed Precision Settings)
High Speed Machining Package - AICCII with 1000 Block Look Ahead

TaperCAT50 (BIG PLUS)CAT50 (BIG PLUS)
X Travel99.2"2,519.7 mm
Y Travel125.9"3,197.9 mm
Z Travel31.4"797.56 mm
Table-L196.8"4,998.7 mm
Table-W94.5"2,400.3 mm
Power3,035 hp2,263.2 kW
RPM6,000 RPM6,000 RPM
# ATC3232
ControlCNC (fanuc 31iMB)CNC (fanuc 31iMB)
Dimensions504.5"x270.2"x236"504.5"x270.2"x236"
Weight97900 LBS97900 LBS
