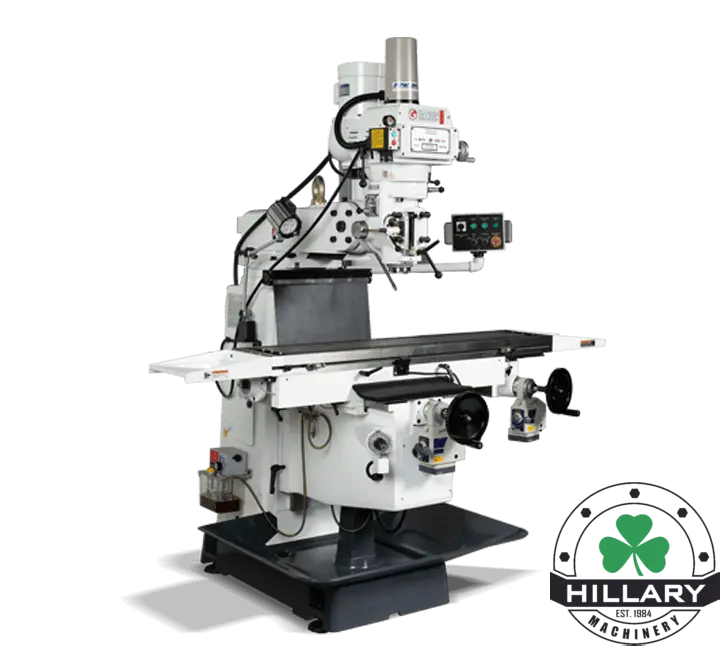

Ganesh GMV-5 Deluxe Heavy-Duty Knee-Mill Milling Table with Extended Support

Description

Construction:

• Meehanite Castings, fine grain and high density cast iron using the superior Meehanite process provides superior vibration dampening and improved surface finish and tool life
• Oversized table support casting provides superior workpiece stabilization & rigidity
• Dual X-Axis gibs are Turcite-B coated and pressure lubricated double-end style
• Extended table support casting provides increased X-axis accuracy by reducing rollover error
• Built-in leveling ledge to make leveling the machine low to ground very easy

Guide Ways:

• Hardened and Ground extra wide Box Way saddle for heavy-duty cutting performance
• Hardened and Ground Square Box Ways on Column and Knee
• Hardened and Ground Machine Table and T-Slots for enhanced wear resistance
• Dovetail ways for longitudinal axis.
• Turcite-B Premium Red Furon Coated way surfaces

Spindle:
• 5-HP Spindle Motor
• Precision Spindle with 0.0002” maximum spindle runout.
• ABEC Class-7 matched Super-Precision spindle bearings
• #40-taper spindle for superior metal removal strength and capability
• Forward/ Reverse spindle switch housed in an oil-tight switch box
• 2 high-output spindle motor fans to provide extra cooling for long service life
• Hardened, ground & polished precision Back Gear for quiet spindle operation

Quill:

• Power quill feed with 3-feeds and adjustable feed stop & automatic feed trip release
• Hardened and Ground Quill – Hard-chrome plated for a long service life
• Quill return spring

Machine Features:

• Hi -Torque 1.5-HP knee powerfeed included to enhance operator efficiency
• Multiple knee and table locks for superior cutting rigidity
• T-slots ground to 5/8” to fit standard workholding nuts
• Automatic Metered Lubrication for slideways and lead screws
• Spring Loaded way cover is included for added safety and protection of machine
• Built-in coolant pump is included
• Coolant & Chip-Tray is included
• Water resistant halogen lamp is included
• Inspection Report on accuracy, Instruction Manual, Tools and Tool Box all included
• Large compliment of parts and accessories in stock to ensure continued operation
