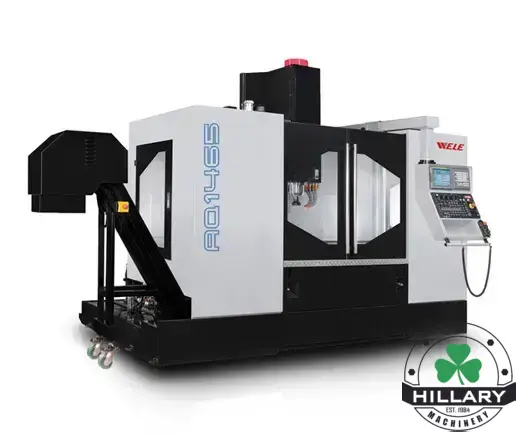

Machine Features Overview
FANUC OiMF PLUS CNC Machine Control

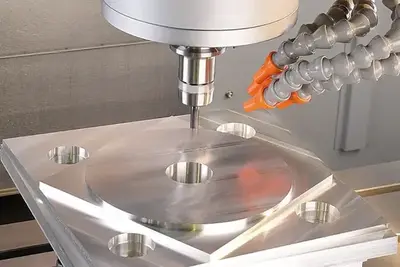

High Speed – 30 HP - 15,000RPM Integral Motor
Spindle – Big Plus CAT40 Spindle Taper
(32) Thirty-Two Pocket Standard Automatic Tool
Changer. (40) Tools Optional Upgrade Available

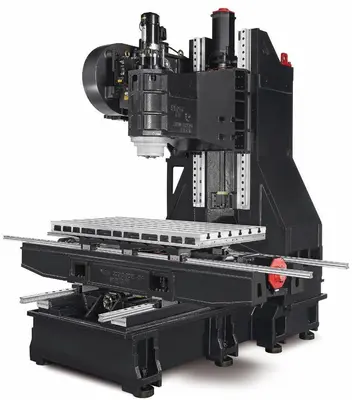

Precision Hand Scraped Machine Metal to Metal
Contact Points for Long Term Accuracy, Vibration
Dampening and Extended Machine Life
Built in WELE iSmartTune Controller Package with
Tool Life Monitoring and ATC Recovery Suite
Standard FANUC Package Includes 200 Block Look
Ahead Function and 2MB Memory Standard
Embedded Machine Operator and Maintenance
Manuals Resident on Controller
Dual Chip Auger with Lift Up Type Conveyor as
Standard Feature. Includes Coolant Wash Down
1000 PSI Through Spindle Coolant Preparation
Machine Specifications
X Axis Travel - AQ1465 1,400 mm (55.1”)
Y Axis Travel 650 mm (25.6")
Z Axis Travel 610 mm (24.0")
Distance from Spindle Nose to Table Top 150 - 760 mm (5.9" - 29.9")
Table Height From Plant Floor 900 mm (35.4")
Spindle Type - Built in Motor
Rapid Feedrate (X & Y Axes) 36 m/min (1,417 ipm)
Rapid Feedrate (Z Axis) 30 m/min (1,181 ipm)
AQ Series – High Speed Vertical Machining Centers Chain
Type ATC 32 Pockets (OPT. 40)
Maximum Tool Diameter with Tool in Adjacent Pocket - 80 mm (3.1")
Maximum Tool Diameter with Adjacent Pocket Empty - 150 mm (5.9")
Maximum Tool Length from Gage Line - 250 mm (9.8")
Maximum Tool Weight - 7 kg (15.4 lb)
Pull Stud - ANSI CAT40
Tool Selection - Random
Tool Access - Bi-Directional
Positioning Accuracy (JIS) - ±.005 mm (±.0002")
Repeatability (JIS) - ±.003 mm (±.0001")
Total Power Required - 3 Phase 10% 220 V (35 kVA)
Power Supply Frequency - 50 / 60 Hz
Axis Guideways - Linear Roller Guideway
Coolant Tank Capacity (Including CTS Tank) - 147.2 gal
Flood Coolant (Gallons per Minute) - 20 gal
