WIA HD3100LY
Have one to sell?
ConditionNew
New

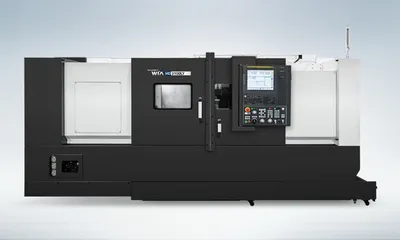

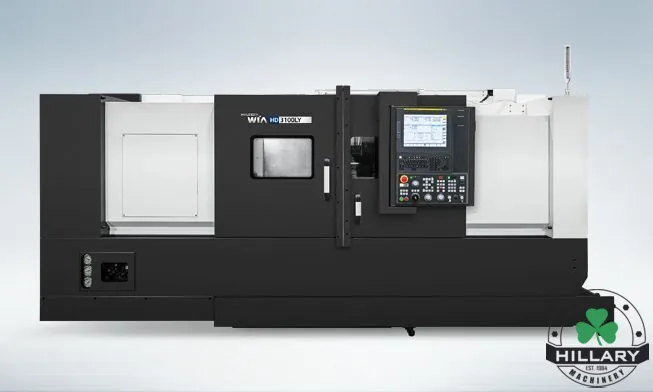

The CNC Turning Center 3100 Series, designed by Hyundai WIA with years of expertise and the
latest technology, is a Turning Center that maximizes productivity and performance.
Box guideways for heavy-duty cutting
Stabilized unit structure to minimize thermal displacement
User convenient structure for high productivity
Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)
High-rigidity and high-speed servo turret (Expanded disk width)
Ergonomic design for convenient access to chuck and tool
Features
Max. turning length 1,280mm (50″) long bed structure
Box guideways for heavy duty cutting

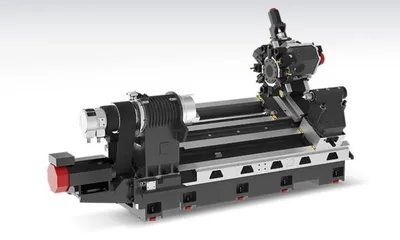

30° slanted one-piece bed structure for high rigidity
Stabilized Unit Structure to minimize thermal displacement

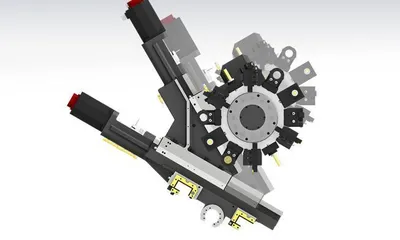

Multi-tasking operation with wedge type Y-axis BMT65 turret
Max Turning Dia inch - 16.5″
Max Turning Length - 50"
Chuck Size - 10"
Driving Method - Belt
Spindle RPM - 3,500 r/min
Spindle Output - 34.9/24.8 HP
Spindle Torque - 541/385 lbf.ft
Travel(X/Y/Z) - 10.4″/4.7″/53.1″
Rapid Travel(X/Y/Z) - 24/10/30 m/min
Slide Type - BOX
No. of Tools - 12
Tool Size - 1″/2″
Milling Tool Speed - 5,000 r/min
