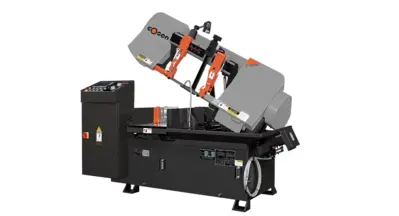

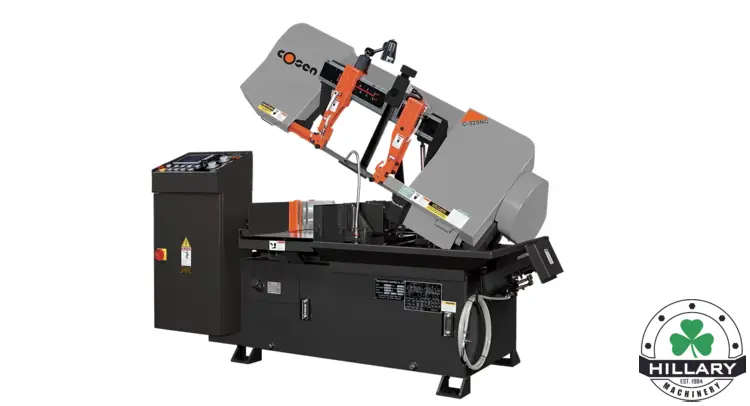

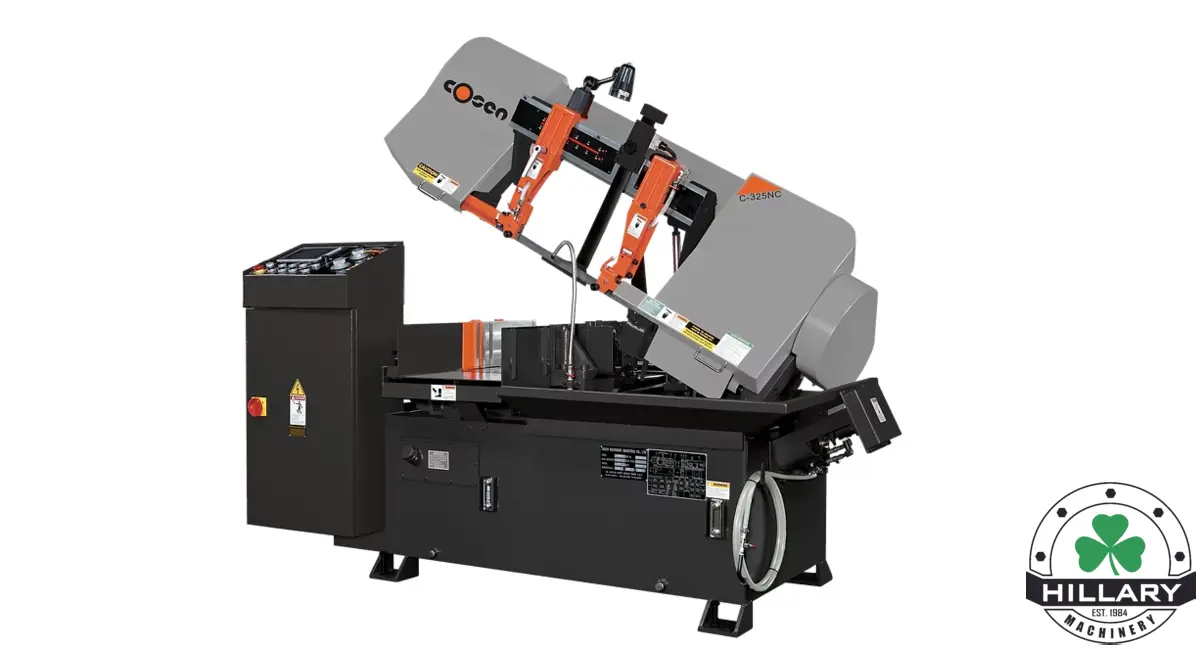

COSEN C-325NC Fully Automatic Scissor Style Band Saw
Have one to sell?
ConditionNew
New
Machine Features:
Hydraulic cylinder supports the saw head with ball joint
Gearbox designed to accept high lateral pressure (no thermal distortion)
Inverter blade drive system which allows infinitely variable blade speeds
5.7” HMI touchscreen
Adjustable flood coolant system
Motor driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Automatic hydraulic blade tensioning device
Cast-iron hydraulic vise
Split vise jaw for reduced burr
Save-A-Blade feature
Precision feed pressure and feed rate dual valve system for optimal cutting performance
Computer controlled multiple indexing up to 999” max length
Included Accessories
Blade “clip” device eases blade changing when necessary by holding the blade on the band
wheel during installation, making it very easy for one person to change the blade.
Adjustable fence to support bundled cut-off stock
Additional flushing hose for cleaning
Built in work light
Bi-metal saw blade
Tool box with tools, leveling pads, and an additional wire brush
Operation & parts manual
Full stroke vises
Double retracting vises
Hydraulic powered chip auger
Maximum Cutting Capacity Round 12.7”
Square 12.7” x 12.7”
Rectangular 12.7” x 14.9”
Bundle Capacity Width 7.4” to 11.8”
w/ optional top clamps Height: 2.7” to 5.5”
Remnant Piece 2”
Blade Variable Speed 60 - 328 fpm
Size 12’ 6.4” x 1.25” x .042”
Motor Saw Blade 5 HP
Hydraulic 1 HP
Coolant 1/8 HP
Auto. Material Feed System Job Storage Up to 100 jobs
Single Index Stroke 0” to 15.8”
Multiple Stroke Indexing 0” to 999”
(Automatic kerf compensation)
Weight 3,836 LBS
Power 230V, 3 PH, 60 Hz
(460, 3 PH, 60 Hz Option)
Floor Space 91” x 82” x 53”
Work Bed Height 28.7”
