Takisawa NT-2000
Have one to sell?
ConditionNew
New

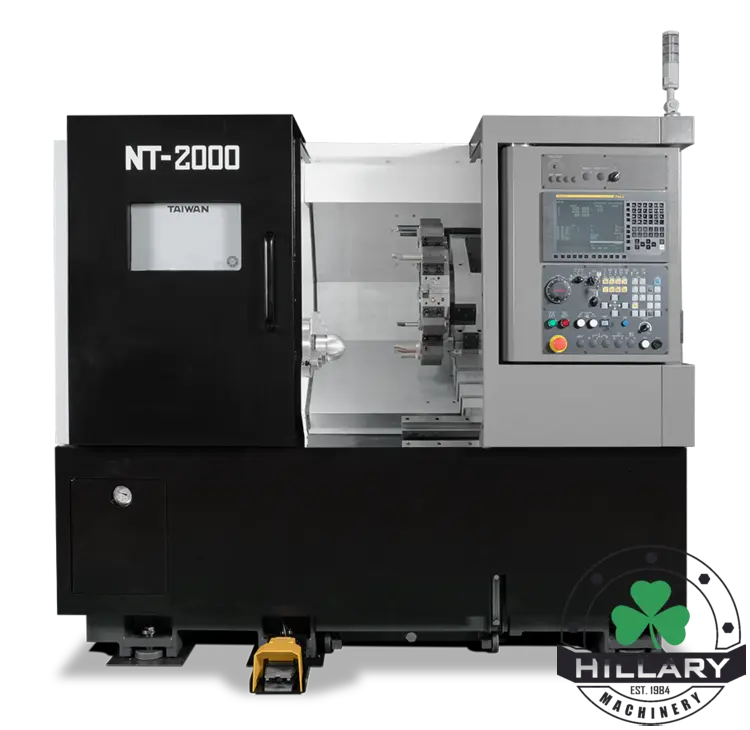

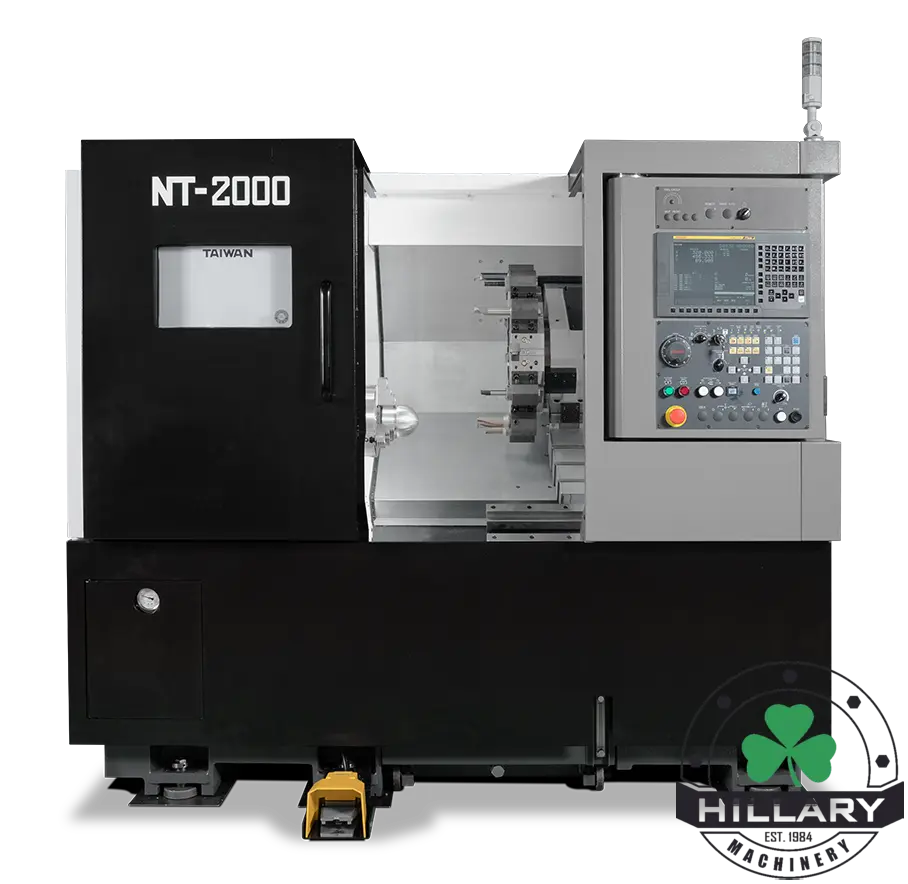

Takisawa Taiwan NT-2000 Turning Center:
Fanuc 0i-TF Plus Control
8" Hydraulic Chuck, 3 Jaw Chuck
Standard Bar Capacity 2"
15/10 HP Spindle, 4000 rpm
12 Station Turret
Manual Positioning Tailstock
Programmable Quill, 100mm stroke
Bar Feed Interface
Standard Tooling Package including, Four(4) Boring Bar Holders,
Two(2) U-Drill Holders, Two (2) Turning Holders
Side Discharge Chip Conveyor
Item Unit NT-2000 NT-2000M
Swing on cross slide mm
Swing over bed mm
Standard turing diameter mm 230(T10) / 210/(T12) 244
Max. turning diameter mm 320 280
Max. turning length mm 482 447.8
Max. bar work capacity mm
X axis travel mm
Z axis travel mm
Spindle speed rpm
Chuck size
Spindle nose
Through hole diameter mm
Bearing diameter mm
Number of tools T10(T12) T12
Turning tool shank mm
Boring bar shank diameter mm
Milling spindle speed rpm 4000
Milling tool shank diameter mm 20
Tailstock travel mm
Tailstock spindle diameter
Taper hole of tailstock spindle
Tailstock spindle travel mm
X axis rapid traverse rate m/min
Z axis rapid traverse rate m/min
Spindle drive motor Kw
Milling spindle motor Kw 3.7/5.5
Turret index motor Kw
X axis drive motor Kw
Z axis drive motor Kw
Height mm
Width mm
Depth mm
Weight kg
1780
2195
1505
4300
7.5/11 (11/15)
1.2
1.2
2.5
75
MT.4
100
24(15)
24(18)
Motor
Machine size
320
400
52(65)
180
530
3500(4000)
8"
A2-6
63(76)
100(110)
25
40
435
