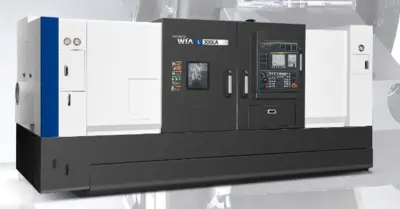

WIA L300MSC

CAPACITY:
Swing over bed Ø29.5” (Ø750mm)
Swing over carriage Ø18.9" (Ø480mm)
Max. turning diameter Ø19.7” (Ø500mm)
Max. turning length 23.6” (600mm)
Bar Capacity (Main/ Sub) Ø3.5” (Ø90mm) [4.0”] / Ø2.6” (Ø65mm)
MAIN SPINDLE:
Chuck size 12” [15”_Big Bore]
Spindle bore Ø4”(Ø 102mm) [Ø4.5”_Big Bore]
Spindle speed 3,000 rpm [2,800 rpm_Big Bore]
Spindle nose A2-8 [A2-11_Big Bore]
A.C. Spindle Motor (S3-60%) 30 HP (22 kW)
Max. spindle torque (S3-60%) 580 lbf.ft (787 N.m)
SUB SPINDLE:
Chuck size 8”
Spindle bore Ø3.1” (Ø78mm)
Spindle speed 4,000 rpm
Spindle nose A2-6
A.C. Spindle Motor (30min, S3-60%) 15 HP (11 kW)
Max. spindle torque (30min, S3-60%) 103.2 lbf.ft (140 Nm)
TRAVEL:
X / Z axis travel 14” (355mm) / 29.5” (750mm)
ZB axis travel 27.5” (700mm)
X / Z axis rapid traverse rate 787 IPM (20m/min) / 945 IPM (24m/min)
ZB axis rapid traverse rate 787 IPM (20m/min)
X / Z axis ball screw diameter Ø1.26” (Ø32mm) / Ø1.57” (Ø40mm)
ZB axis ball screw diameter Ø1.26” (Ø32mm)
X / Z axis guideway span 13.8” (350mm) / 16.5” (420mm)
ZB axis guideway span 15.7" (400mm)
TURRET (BMT 65P):
Number of tools 12
Turning tool shank size 1” (25mm)
Boring bar diameter Ø2” (Ø50mm)
Turret index time (1 step) 0.3 sec
Turret clamping force 14,425 lbs (6,543 kgf)
COOLANT and HYDRAULIC SYSTEM:
Coolant tank capacity 58.1 gal (220 liter)
Hydraulic tank capacity and required oil 5.3 gal (20 liter) / VG32 or CB32
Lubrication tank capacity and required oil 0.5 gal (1.8 liter) / G68
GENERAL:
Machine Height 78.6” (1,997 mm)
Floor Space (L) with side chip conveyor 192.6” (4,892 mm)
Floor Space (W) 75.5” (1,917 mm)
Machine weight 15,653 lbs (7,100kg)
Power required 38 kVA @ 220V
Voltage Required 205 - 235 Volts / 3 Phase
