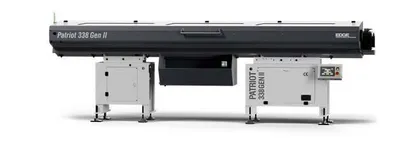

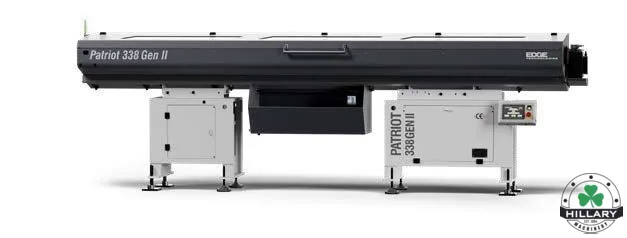

EDGE TECHNOLOGIES Patriot 338 Gen II 12'

Description

Features:
• Bar diameter capacity: 3mm to 42mm
(0.118” to 1.653”)
• Automatic loading magazine – 12 linear inches of rack
capacity
• Polyurethane quick-change guide channel – noise &
vibration dampening
• Hydrodynamic support via high-volume oil flow into channels
• Dual anti-vibration devices — one internal to the bar feeder,
the other mounted between the telescopic nose and the
lathe headstock

Standard Accessories:
• (1) Guide channel set to be chosen by customer. Several
sizes to choose from, each handling a specific stock range.
See chart on next page (spindle liner required if channel set
is not lathe’s max capacity)
• (1) Standard telescoping front nose matched to the guide
channel set
• (1) O.D. bar stock collet to be chosen by customer.
(Specific collet needed for each stock diameter.)
• (1) Bushing block for outboard anti-vibration device to be
chosen by customer based on bar diameter
• Swiss headstock synchronization device & adaptation kit
• Custom lathe cable and interface plugs
• Air knife with flow control valve
• Axial shift
