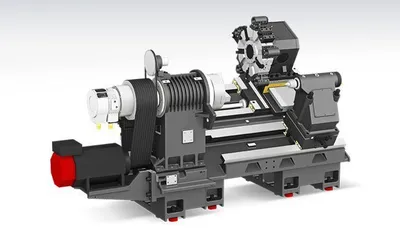

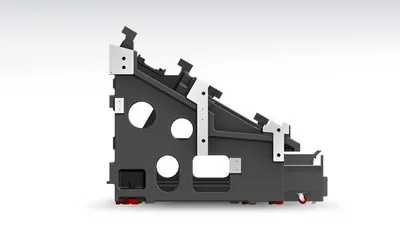

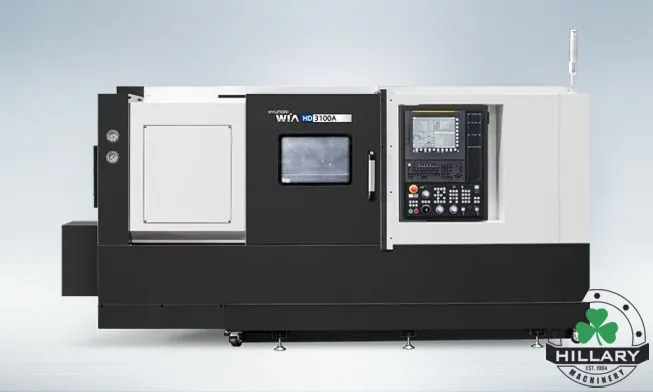

The CNC Turning Center HD3100MA is designed by HYUNDAI WIA with years of expertise and the latest technology, is designed to maximize productivity by enhancing both technical performance. All axes of HD3100 Series are designed with Box Guideway and providing more heavy duty cutting performance.
SPECIFICATIONS
CAPACITY:
Swing over bed Ø29.5" (Ø750mm)
Swing over carriage Ø19.7" (Ø500mm)
Max. turning diameter Ø16.5" (Ø 420mm)
Max. turning length 29.1" (740mm)
Bar Capacity Ø3.2" (Ø81mm)

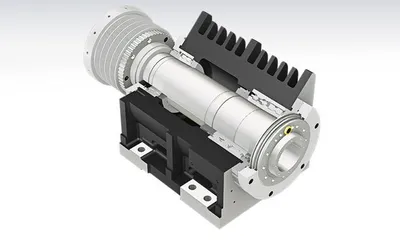

SPINDLE:

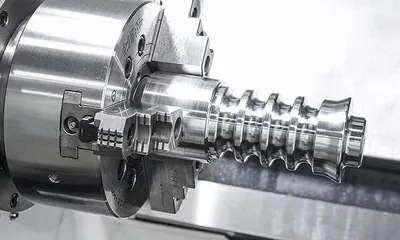

Chuck size 10"
Spindle bore Ø3.6" (Ø91mm)
Spindle speed 3,500 rpm
Spindle nose A2-8
A.C. Spindle Motor (S3 25%) 35 HP (26 kW)
Max. spindle torque (S3 25%) 541.4 lbf.ft (734 N.m)

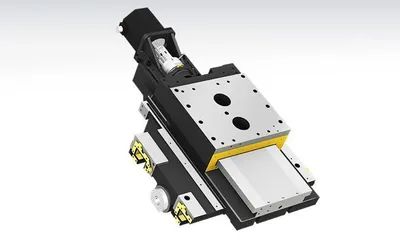

TRAVEL:
X / Z axis travel 10.4" / 32.7" (265 / 830mm)
X / Z axis rapid traverse rate 945 / 1,181 IPM (24 / 30m/min)
X / Z axis ball screw diameter Ø1.26" / Ø1.57" (Ø32 / Ø40mm)
X / Z axis guideway span 14.17" / 17.32" (360 / 440mm)

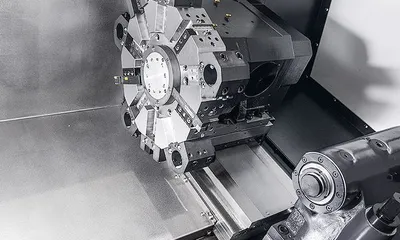

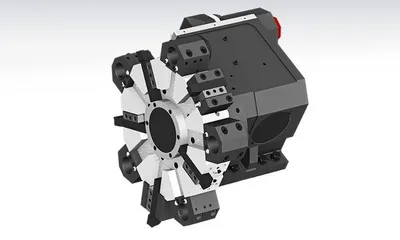

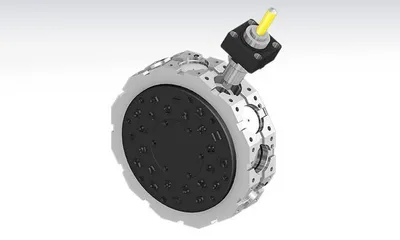

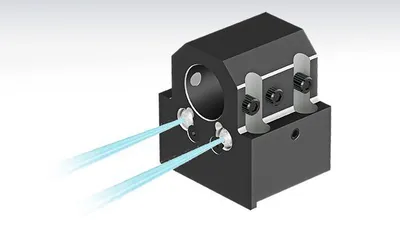

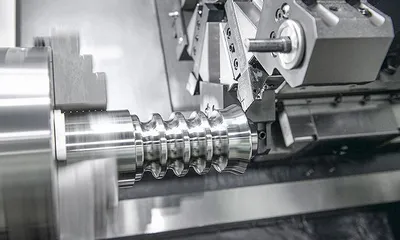

TURRET (BMT65P):
Number of tools 12
Turning tool shank size □1" (□25mm)
Boring bar diameter Ø2" (Ø50mm)
Turret index time (1 step) 0.15 sec
Turret clamping force 13,576 lbf (6,158 kgf)

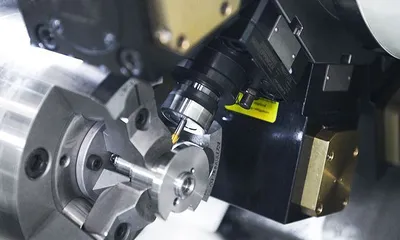

Live Tool Motor Power / Torque (30min) 7.4 HP (5.5 kW) / 51.6 lbf.ft (70 N.m)
[10.1 HP (7.5 kW) / 70.4 lbf.ft (95.5 N.m) (5min)]
Milling Tool Speed 5,000 RPM [5,000 RPM]

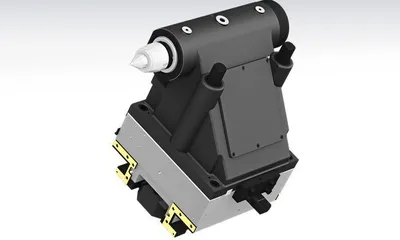

PROGRAMMABLE TAIL STOCK (Tow-along type):
Tailstock quill diameter Ø3.94" (Ø100mm)
Tailstock quill stroke 4.72" (120mm)
Tailstock body stroke 32.7" (830mm)
Tailstock spindle taper MT #5
Max. tailstock quill thrust 2,180 lbf (989 kgf)
COOLANT and HYDRAULIC SYSTEM:
Coolant tank capacity 52.8 gal (200 liter)
Hydraulic tank capacity and required oil 7.9 gal (30 liter) / VG32 or CB32
Lubrication tank capacity and required oil 0.5 gal (1.8 liter) / G68
GENERAL:
Machine Height 72.8" (1,850 mm)
Floor Space (L) with side chip conveyor 188.4" (4,785mm)
Floor Space (W) 70.9" (1,800 mm)
Machine weight 13,228 lbs (6,000kg)
Power required 27 kVA / 71 amp @ 220V
Voltage required 205 - 235 Volts / 3 Phase
Specifications are subject to change for improvement without notice.
