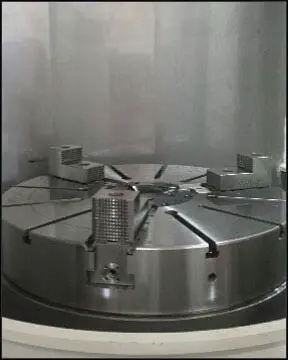

Valid Machinery VT-1000 with 40" 3 jaw hydraulic Chuck- NEW CONDITION NEVER IN PRODUCTION
Have one to sell?
ConditionUsed
1 available
This machine has been in storage since 2014. Still in new condition.

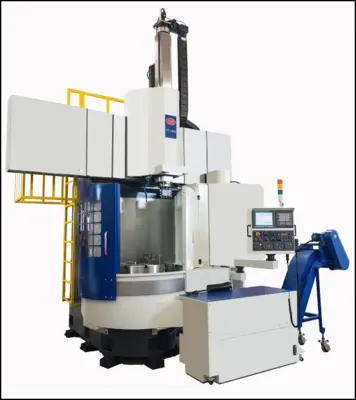

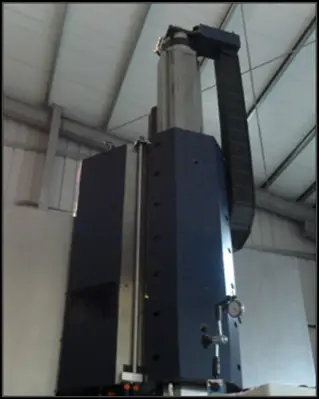

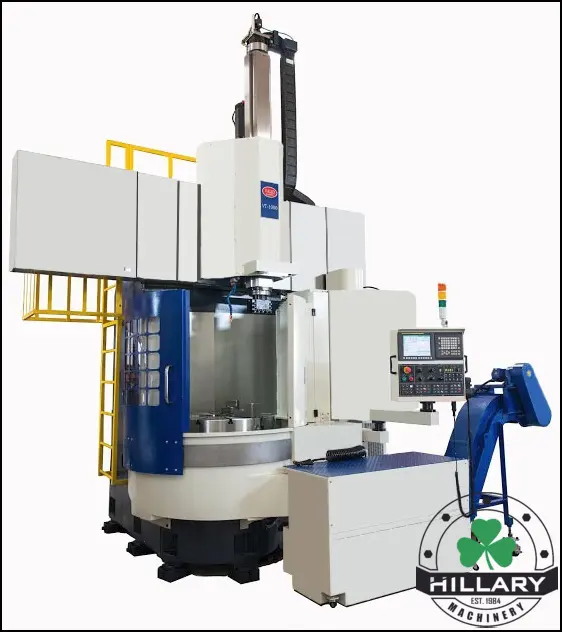

The Valid VT-1000 CNC Vertical Lathe is the result of several years of collaboration between Valid Machinery of the United States and Precursor Tech Co. LTD. of Taiwan. The VT-1000's ram-type fixed-rail design is inspired by the strength and durability of vertical turret lathes and boring mills from around the world with a special focus on the U.S. models. The latest manufacturing methods are utilized in building Valid machines and we believe them to be among the most advanced and rugged in the world, as well as affordable.
SPECIFICATIONS:
CAPACITY
Max. swing diameter 47.24” (1200 mm)
Max. turning diameter 47.24” (1200 mm)
Max. turning height 39.37(1000 mm)
Max. distance bottom ram to chuck 51” (1295 mm) (without tool holder) Table diameter Ø39.37(Ø1000mm)
Max. table load 19,800 lbs (9,000 KGS)
SPINDLE
Spindle motor type FANUC α30i/6000
Horsepower 50 HP
Gear ranges 2
Spindle speed range 1-250; 2-500 RPM

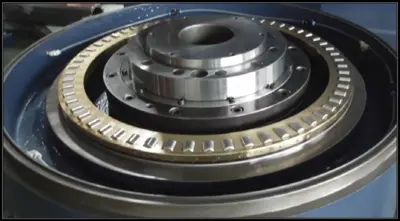

Thrust Bearing NSK 610TMP7102A
X & Z AXIS
Max. X-axis travel 45.28” (1,150 mm)
Max. Z-axis travel 39.7” (1,000 mm)
X axis rapid 393 IPM(10 m/min)
Z axis rapid 590 IPM(15 m/min)
X-axis servo motor FANUCα40i; 6 KW (8 HP)
Z-axis servo motor FANUCα40i; 6 KW (8 HP)
TOOL MAGAZINE
Magazine capacity 12
Tool holder coupling
Driven type Servo motor indexing
Maximum tool length 19.7” (500 mm)
Maximum tool weight 88 lbs (40 kgs) Tool change time pocket to pocket 1 Sec
GENERAL
Coolant tank capacity 50 gallons
Power requirement 220/3/60 +/- 10%
Machine weight 33,000 lbs (15,000 KGS)
Dimension L x W x H 98”x138”x177” (2500x3,500x4500 mm)
