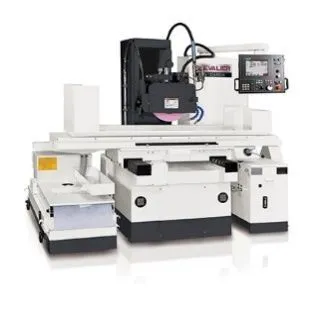

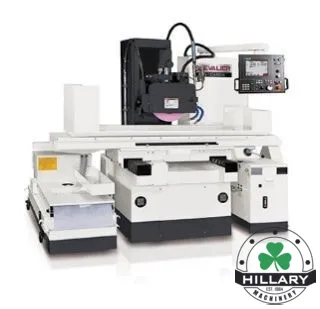

Chevalier FSG-1224ADIV

Description

FEATURES:
- SMART iSurface Controller
- PC based, touch screen, 3 axes fully automatic surface and plunge grinding system
- 10.4” TFT high resolution 65,536-pixel color control to ensure ease of operation
- Rough increment, finish increment, spark out (0-9 times), and automatic wheel head retract can be preset in grinding cycle to reduce cycle time
- Cycle interruption, flip over for part inspection & final dimensions set up
- Precision roller bearings on all 3 axes
- Heavy duty spindle with 2 sets (4) of class 7 super precision angular contact ball bearings
- Ball screw on the Elevating and Crossfeed with AC servo motor
- Hardened and ground guideways for durability
- Quick table and crossfeed stroke adjusting device
- Wheel head will rise to end, start and reference position and table parks at the left or right side after cycle is completed
- MPG (manual pulse generator)
- To achieve better accuracy, the number of free passes between down-feeds can be preset, depending on work piece material
- I/O diagnosis & alarm display
- In-Machine Dynamic Balancing
- Automatic table dresser with automatic compensation system helps to reduce cycle time and minimize operator involvement
- iMachine Communications System TM connection ready
- Variable spindle speed
- Constance surface speed
- Spindle load force detection
STANDARD ACCESSORIES:
- Diamond dresser with diamond (1K) - Touch-up paint
- Grinding wheel - Balancing arbor
- Spare fuses, hole plugs - Wheel flange and weights
- Operating manual, parts list & accuracy report - Leveling screws, nuts, and pads
- Splash guard assembly (pipe & nozzle included) - Tool box with tools
