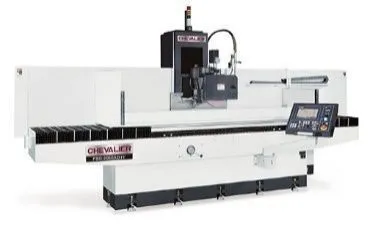

Chevalier FSG-2064ADIV

Description

FEATURES:
- iSurface Controller with touch screen, 3 axes fully automatic surface and plunge grinding system
- 10.4” TFT high resolution control to ensure ease of operation
- Rough increment, finish increment, spark out (0-9 times), and automatic wheel head retract can be preset in grinding cycle to reduce cycle time
- Cycle interruption, flip over for part inspection & final dimensions set up
- Heavy duty spindle with 3 sets (6) of class 7 super precision angular contact ball bearings
- Ball screw on the Elevating and Crossfeed with AC servo motor
- Hand-scrapped Turcite-B coated guide ways on the table
- Digital setting crossfeed stroke device
- Wheel head will rise to end, start, and reference position and table parks at the left or right side after cycle is completed
- MPG (manual pulse generator)
- To achieve better accuracy, the number of free passes between down-feeds can be preset, depending on work piece material
- I/O diagnosis & alarm display
- In-Machine Dynamic Balancing
- Automatic table dresser with automatic compensation system helps to reduce cycle time and minimize operator involvement
- iMachine Communications System TM connection ready
- Variable spindle speed
- Constance surface speed
- Spindle load force detection
STANDARD ACCESSORIES:
- Diamond dresser with diamond (table)
- Splash guard coolant nozzle and pipe
- Toolbox and tools including wrenches,
fuses and touch-up paint
- Leveling pads, screws, and nuts
- 0.0001" micro down feed
- Hook spanners
- Balancing arbor
- Setting bolt & nut
- Double sided water baffle
- One grinding wheel & hub
- Operation manual/parts list
- Integrated oil cooling system for lubrication, hydraulic, & spindle
