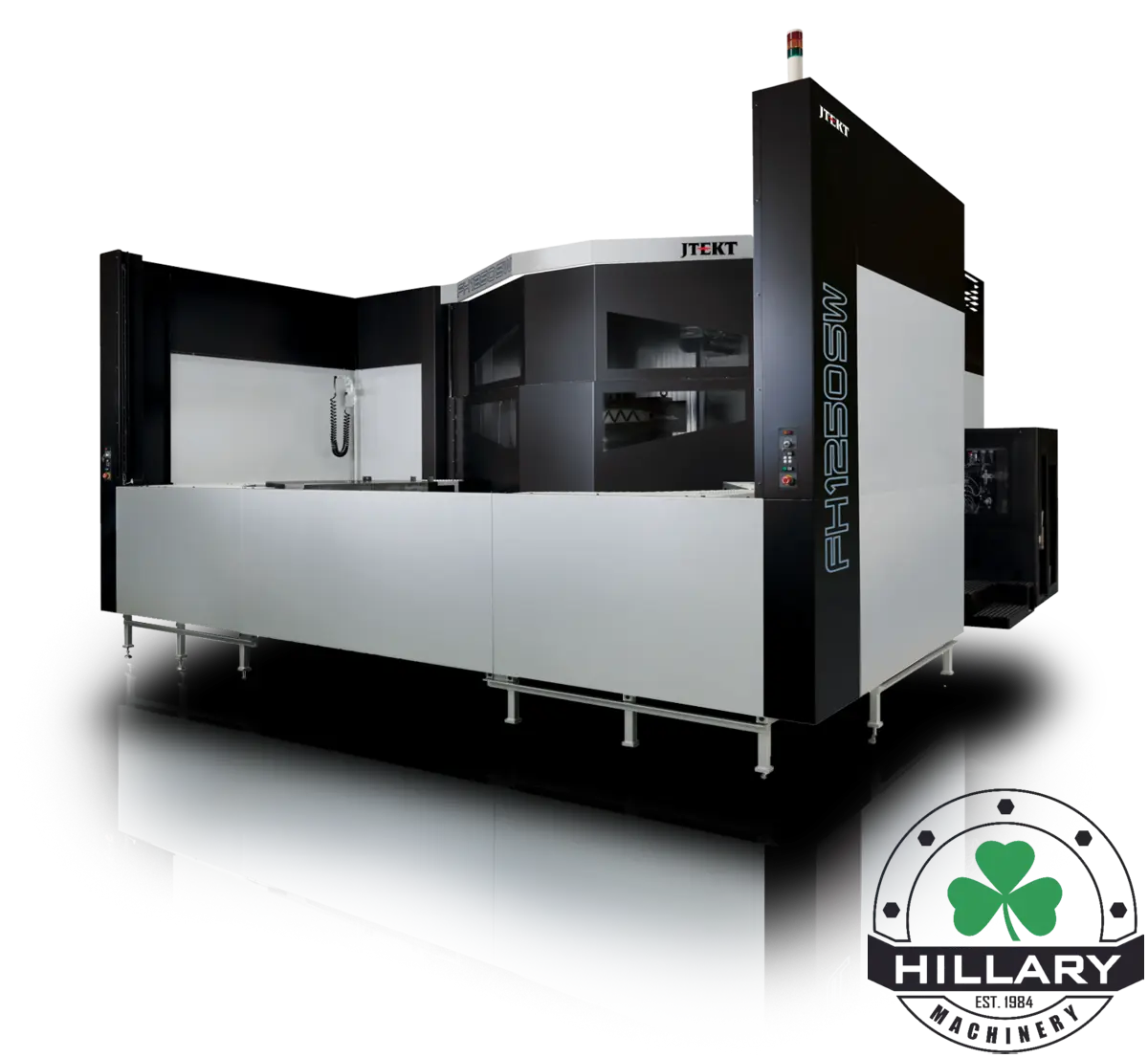

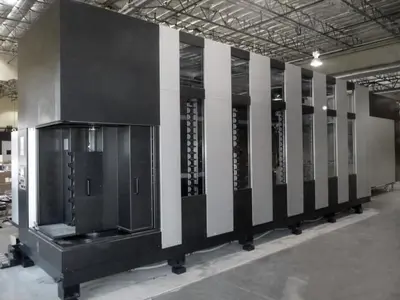

JTEKT/TOYODA FH1250SX-I HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionNew
New
TOYOPUC TOUCH HMI Control
Available with Gear Driven, Quill Feed, and High Speed Direct Drive Spindle Options
FCD600 Cast Iron Column for Unsurpassed Vibration Dampening
Y Type Shuttle - Side by Side Style Pallet Changer with Operator Platform
Core-Cooled Ball Screws in All Five Machine Ball Screws
Dual Z-Axis and Y-Axis Ball Screws to Support Heavy Cutting Conditions
Six Spindle Carriage Guide Trucks Provide Unsurpassed Cutting Support
Machine Weight of 105,600lbs Engineered with FEM Analysis to Reduce Vibration
Robust Full Contact Table Clamping Plate with Dual Cylinder Actuation

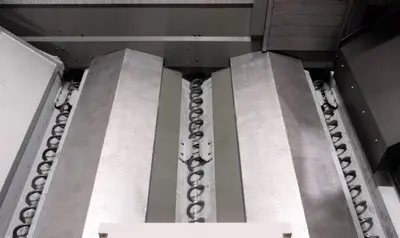

Triple Through Chip Removal Designed for Highly Efficient Chip Management

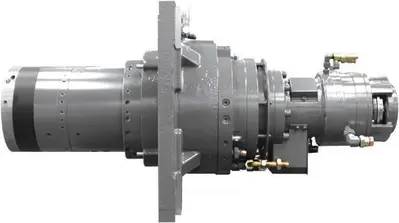

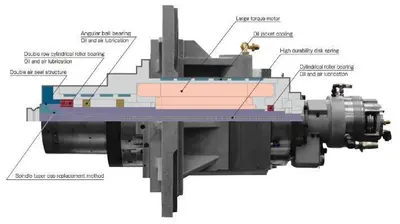

8,000 RPM High Torque Integral Spindle (8,000 RPM - 74HP - 1202NM)
Big Plus modification for All Series Spindles
High Pressure Coolant-Thru-Spindle (Up To 1,000 PSI) 8.5 Gpm
Pump with Relief Valve Calibrated for 500 ~ 1,000 PSI

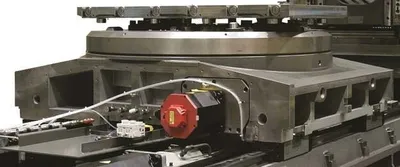

360,000 Degree NC Positioning B Axis Table
Overhead Coolant Shower
Hand Held Splash Gun at APC Load Station
FANUC 31iMB with Toyopuc Touch 19" Touch Screen HMI Display
Upgrade Control Features - 8MB Memory - 48 Work Offsets - 200 Tool Offsets
High Speed Control Features - 1000 Block Look Ahead Funtion with High Speed Processor
OP Supporter Package - Tool Life Management - Adaptive Control
