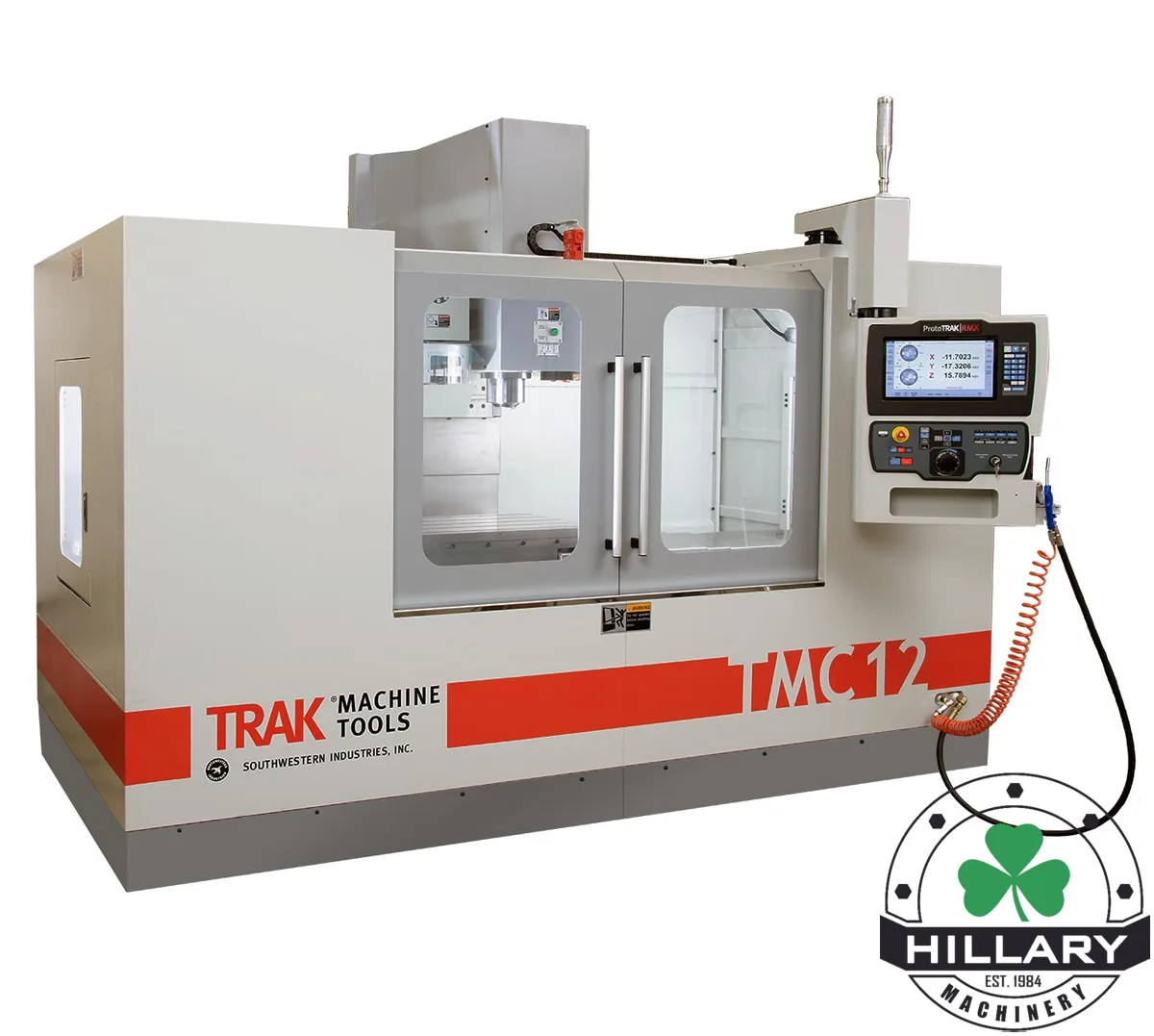

TRAK TMC12 12K TOOL ROOM VERTICAL MACHINING CENTER
Have one to sell?
ConditionNew
New
Overview
Type:
Tool Room Mills
Manufacturer:
SOUTHWESTERN INDUSTRIES
Model:
TMC12
Status:
For Sale
Introducing the World's First Toolroom VMC featuring the New ProtoTRAK RMX. It's a full featured 3-axis machining center when you need to run low volume production. The amazing new ProtoTRAK® RMX CNC delivers a powerful easy-to-use interface. With the flip of a switch, you enter into Toolroom Ops™. Now your VMC works like our popular TRAK® DPM, only with an enclosure that keeps chips and coolant contained. Optional electronic handwheels allow you to crank the table and saddle for that familiar feel of working a manual machine. Transition from manual operations to 2 and 3-axis CNC.
Machine Specifications
• Table Size – 23.62″ x 51.18″
• T-slots (number x width x pitch) – 5 x .709″ x 4.921″
• Travel (X, Y, Z axis) w/ Soft Limits – 50″ x 27″ x 25″
• Spindle Taper – 40 Taper
• Spindle Speed Range (RPM) – 50 – 12,000 RPM
• Spindle Nose Diameter – 3 ¾”
• Tool Clamping Force (90 psi) – 2,200 lbs.
• Tool Holder Type – CAT 40 or BT 40
• ATC Tool Capacity – 16
• Maximum Tool Weight (incl. holder) – 15 lbs.
• Maximum Tool Diameter – 3.14”
• Carousel Speed – .8 sec from station to station
• Tool Selection System – bi-directional/shortest path
• Spindle Motor HP (peak) – 22.5 HP
• Spindle Motor HP (continuous) – 15 HP
• Power Requirements (standard) – 208V (200-240V is acceptable), 3P, 88A
Note – Current can be as high as 93A with the 4th axis option ordered (+5A)
Power Requirements (optional) – 480V w/ transformer option (432-528V is acceptable), 3P, 43A
Note – Current can be as high as 46 amps with the 4th axis option ordered (+3A)
Maximum Weight of Workpiece – 2,200 lbs.
• Height of Table from Bottom of Bed*** – 38.37”
• Min. Spindle Nose to Table Distance**** – 2.25”
• Max. Spindle Nose to Table Distance**** – 28.75”
• Distance of Tool Carousel to Table – 21.5”
• Spindle Center to Spindle Head Casting Face – 27.56”
• Min. Machine Height*** – 105”
• Max. Machine Height (head all the way up)*** – 120.5”
• Overall Width of Machine (w/ side doors open, auger chute, and chip container in place) – 206.27”
• Overall Length of Machine (w/ electrical cabinet fully open 180°) – 156.22”
• Footprint of Machine w/ Coolant Tank in Place (w x l) – 133.86” x 144.76”
• Weight Net – 14,300 lbs.
• Weight Ship – 14,800 lbs.
• Rapid Traverse X, Y, Z – 1,000 ipm
• Coolant Capacity – 70.5 gal
• Coolant Pump – 750 Watts
• Coolant Wash Pump – 1290 Watts
• Air Pressure – 3.0 CFM (at 90 psi) or 25 SCFM
• Air Quality – Air dried/water separator upstream of TMC
• Lubrication Pump Capacity – 2 liters
Note: *** Height changes slightly based on how machine is leveled on leveling screws.
**** Can vary slightly due to home switch location and soft limit settings.
