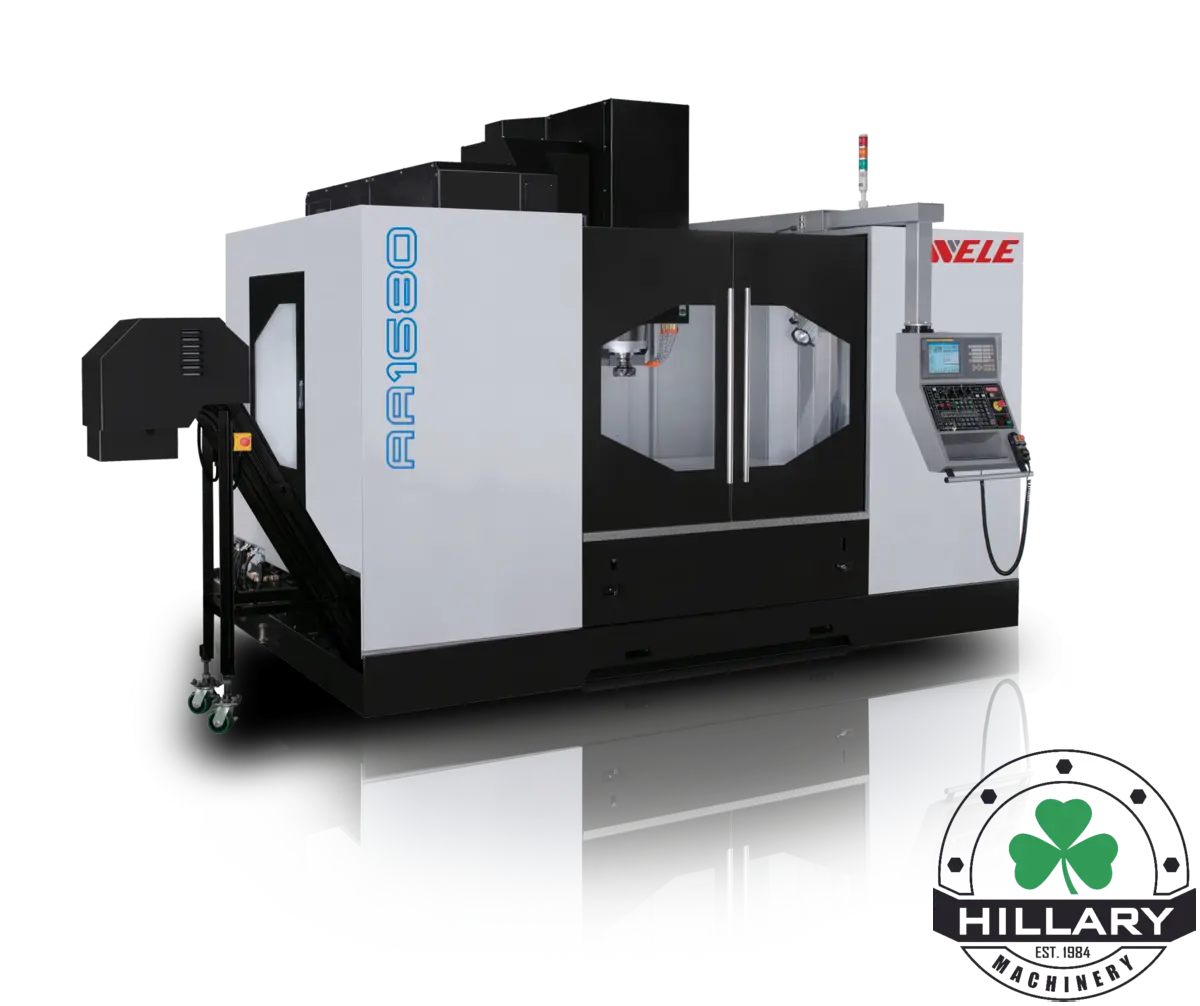

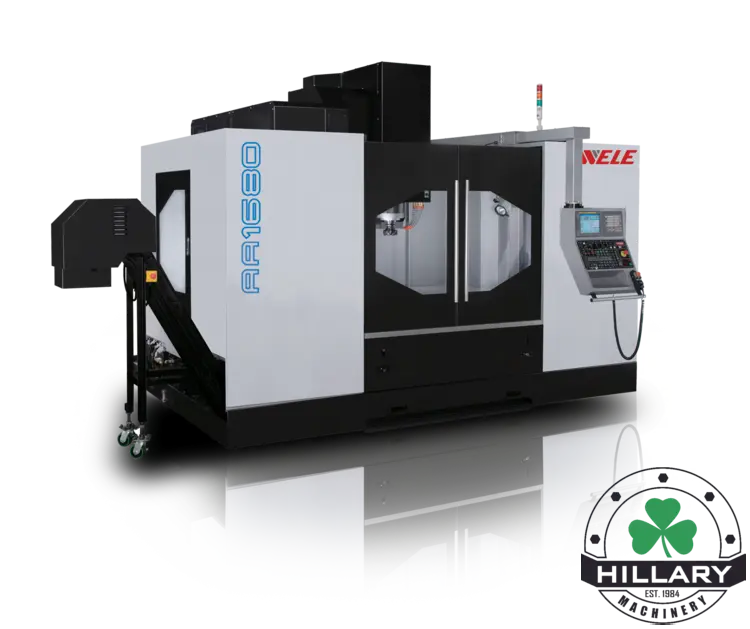

TOYODA-WELE AA1680 Vertical Machining Center Designed for Machining of Titanium and Hard Alloy Components
Have one to sell?
ConditionNew
New
The machine series developed for the demanding, high performance medium heavy cutting tools. Fitted with generously sized sliding guides and equipped with a mechanical, two speeds geared head as standard which is directly coupled to the precision spindle.
Machine Specifications
Maximum Tool Diameter with Tool in Adjacent Pocket (5.0")
Maximum Tool Diameter with Adjacent Pocket Empty (9.0")
Maximum Tool Length from Gage Line (11.8") Maximum Tool Weight (33lb)
Tool Taper CAT50
Pull Stud ANSI CAT50
Tool Selection Random
Tool Access Bi-Directional
Positioning Accuracy (JIS) (±.0002")
Repeatability (JIS) (±.0001")
Total Power Required 3 Phase ±10% 220 V (50 kVA) Air Pressure 100 psi
Power Supply Frequency 50 / 60 Hz
Control Voltage 24 Volt
Control Type Fanuc 0i MF-Plus 15” LCD
Axis Guideways Box Way
Machine Weight (35,273 lb)
Machine Length * (217.2")
Machine Width * (172.2")
Machine Height * (136.9")
Flood Coolant (Gallons per Minute) 20 gal
Maximum Tool Diameter with Tool in Adjacent Pocket (5.0")
Maximum Tool Diameter with Adjacent Pocket Empty (9.0")
Maximum Tool Length from Gage Line (11.8") Maximum Tool Weight (33lb)
