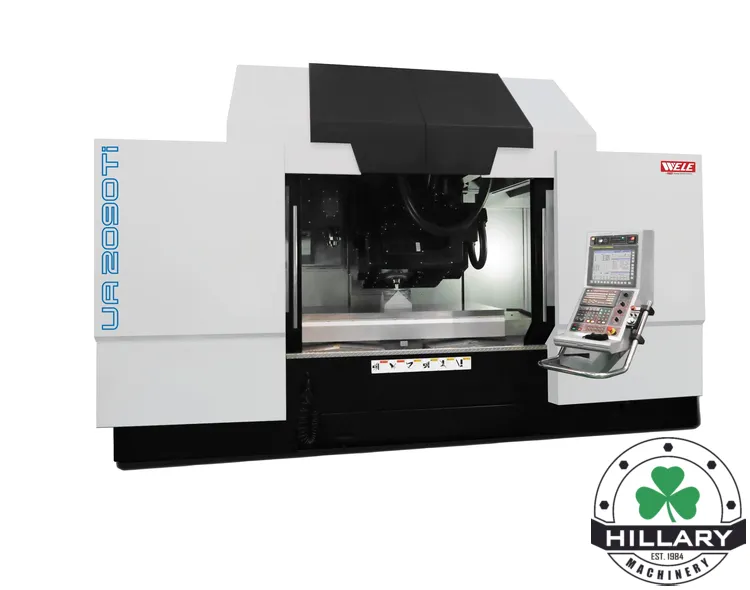

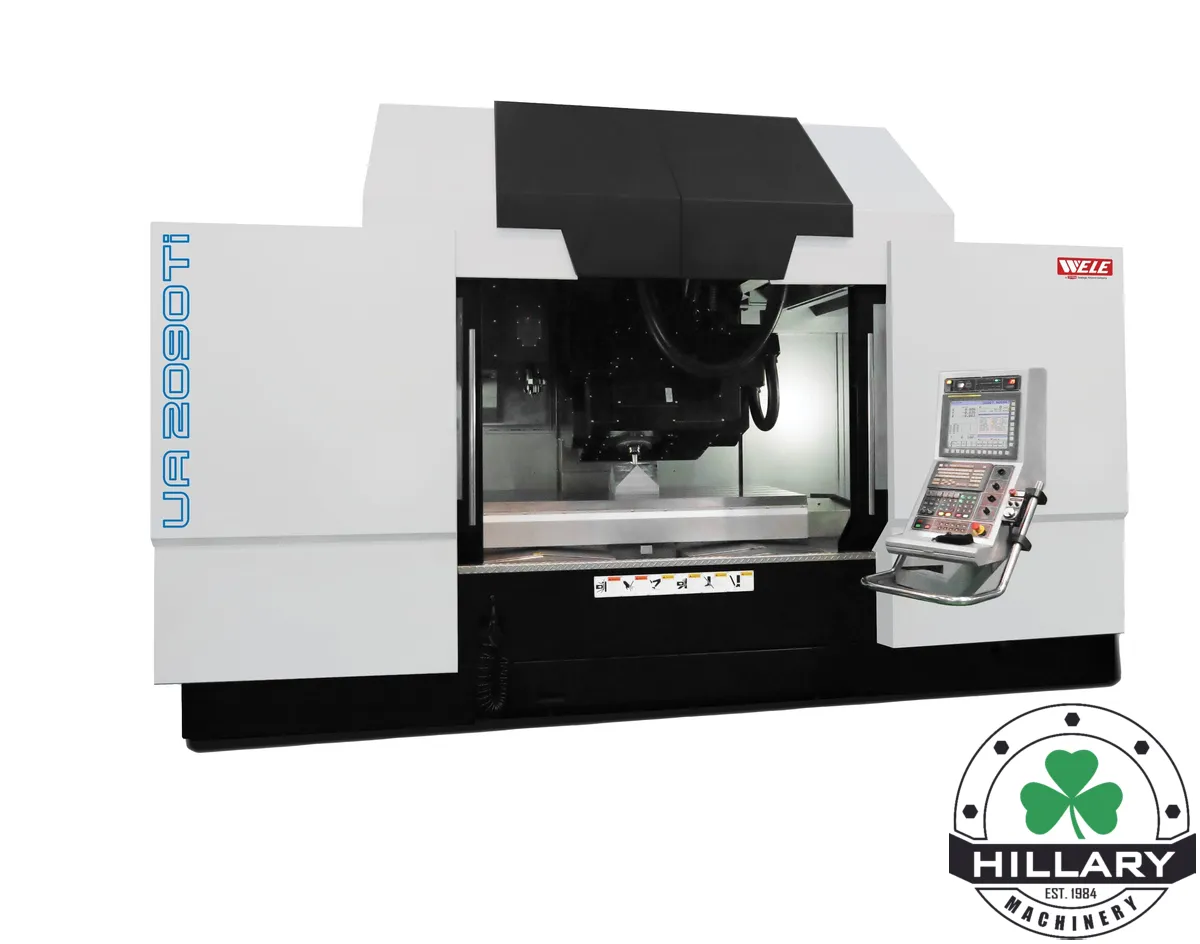

Toyoda-WELE UA2090Ti 5 Axis Vertical Machining Center Designed for Machining of Titanium and Hard Alloy Components
Have one to sell?
ConditionNew
New
High-Performance Spindle with Two-Axis Tilting Head A/B Axis +/- 30 Degree
The spindle head is adapted with a direct drive, 8,000 RPM, 35 HP spindle that has a maximum torque of 811 ft-lb. The rugged five-axis, A and B head design allows for simple fi ve-axis programming. The Z axis incorporates a gas-over-oil counterbalance system for smooth positioning and cutting.
Advanced Control
The Fanuc 31i five-axis CNC delivers high-end features for a wide range of production and job shop environments. This powerful control allows for accurate cutting performance for even the most complex five-axis applications. With the UA2090Ti Series, smooth surface finishes and fast cycle times are possible using such features as AI Nano II and Smooth TCP.
Stroke
X Axis Travel (Table Movement) mm (in) 2,000 (78.7)
Y Axis Travel (Table Movement) mm (in) 900 (35.4)
Z Axis Travel (Head Stock Movement) mm (in) 700 (27.5)
Distance Between Table and
Spindle Nose in Vertical Position mm (in) 80-780 (3.1-30.7)
Table
Unit
Specifications
Clamping Area mm (in) 2,150 x 900 (84.6 x 35.4)
Maximum Table Load kg (lb) 2,200 (4,850)
A & B Axes Head
Unit
Specifications
A Axis (Swiveling Range) deg ± 30
A Axis (Torque) Nm (ft-lbs) 4,950 (3,650)
B Axis (Rotating Range) deg ± 30
B Axis (Torque) Nm (ft-lbs) 7,960 (5,871)
Pivot Point Distance (Nominal) mm (in) 180 (7)
Spindle with 8,000 RPM
Spindle Power (Cont. / 30 min.) Kw (hp) 22/25 ( 30/35 )
Spindle Speed rpm 0-8,000
Spindle Bearing Diameter mm (in) 110 (4.3)
Maximum Torque at spindle 100% Duty Nm (ft-lb) 1,100 (811)
*Spindle Taper Std BCV50 type BCV50 Big Plus #50
Feedrates
Rapid Feedrate (X and Y Axes) in/min 944
Rapid Feedrate (Z Axis) in/min 708
Rapid Feedrate ( A and B Axes) rpm 6
Cutting Feedrate (X, Y & Z Axes) mm/min (in/min) .001-8.0 (0.00 -315)
Cutting Feedrate (A and B Axes) rpm 3.5
ATC BCV50
Tool Magazine Capacity number 30 (40 Optional)
Maximum Tool Diameter / Adjacent Pocket Empty mm (in) 80 / 150 (3.15 / 5.91)
Maximum Tool Length mm (in) 250 (9.8)
Maximum Tool Weight kg (lbs) 7 (15.4)
Tool Taper type BCV (Big Plus) 50
Accuracy (ACC to JIS Standard) Unit Specifications
Positioning Accuracy in X, Y and Z Axes mm (in) ±0.005 / 300 (±.00019 / 11.81)
Repeatability in all X,Y,Z Axes mm (in) ±0.003 (±0.0001)
Positioning Accuracy in A, B Axes Arc Sec ±15 A, ±30 B
Repeatability Accuracy in A, B Axis Arc Sec ±10 A, ±15 B
Utilities
Spindle Lubrication type Oil Mist
Slide Lubrication type Central Oil Lubrication
Pneumatic Air Resource bar (Psi) 6 2M3 (90-100 70 Cfm)
Power Required 220 V, 60Hz, 65 kVA
STANDARD EQUIPMENT:
8,000 RPM
CAT 50 BIG PLUS
40 TOOLS
OPTIONAL EQUIPMENT: NOT INCLUDED IN PRICE
• Upgrade to 1,000 Psi Coolant Through Spindle, 8.5 gpm, manual adjustable, includes Relief Valve, Pulsation Suppressor, 25 Micron Bag Filter, Filtration of both Flood and CTS Coolant. Ships separately and retrofit during machine installation.
• Drum Filter Type, lift up chip conveyor, 1,200mm (47") drop height ( to be quoted by Engineering)
• CT50 Sixty (60) Tool Automatic Tool Changer
• Rear ATC Tool Load Access (Incl. Control Panel & Hand Tool) for FV Series Machining Centers
• APC 8030 Automatic Pallet System (AS8030 SD), includes one (1) pneumatic receiver with air blast, capacity 8,000 lbs., two (2) cast aluminum pallets 80"x29"x2.5" (2,533mm x 736mm x 63mm), one (1) end load shuttle unit with automatic door and indicator lamp (includes CE safety specification), TMU upgrades
• APC Option (AS8030 SDP), Custom cast iron pallet 80" x 29" x 2.5" (2,533 mm x 736.6 mm x 63.5 mm)
• OMP60 Optical Spindle Probe, includes installation and Inspection Plus Software (for Vertical Machining Centers and Bridge Machines)
• RMP60 Radio Freq. Spindle Probe, includes installation and Inspection Plus Software (for Vertical Machining Centers and Bridge Machines)
• OTS Optical Contact Tool Setting Probe, includes installation (for Vertical Machining Centers and Bridge Machines)
• NC4 Non Contact Laser Tool Setting Device, includes Multi Skip & installation (for Vertical Machining Centers and Bridge Machines)
• RTS Radio Freq. Contact Tool Setting Device, includes installation (for Vertical Machining Centers and Bridge Machines)
• 31i Only: 1,000 Block LooktAhead (Requires AI Precision Contour Control II with High Speed Processor)
• Upgrade to 2,048 Kbyte (5,120M) Memory in Lieu of Std.
• AICC II Upgrade from 200 bps to 600 bps Look Ahead (31i MB Only)
