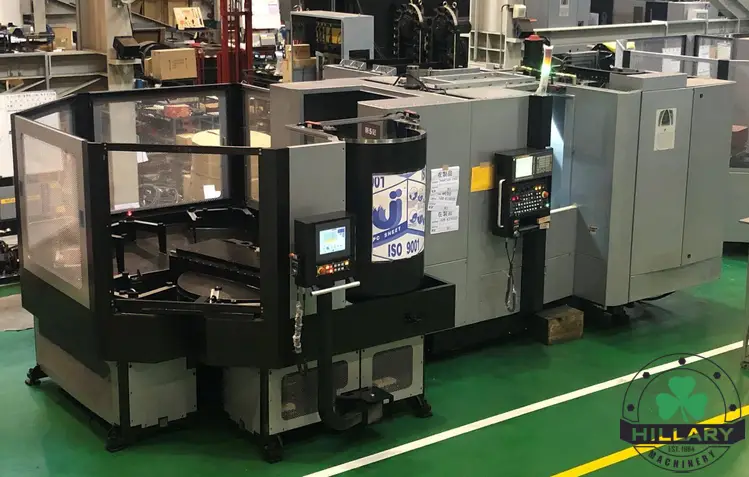

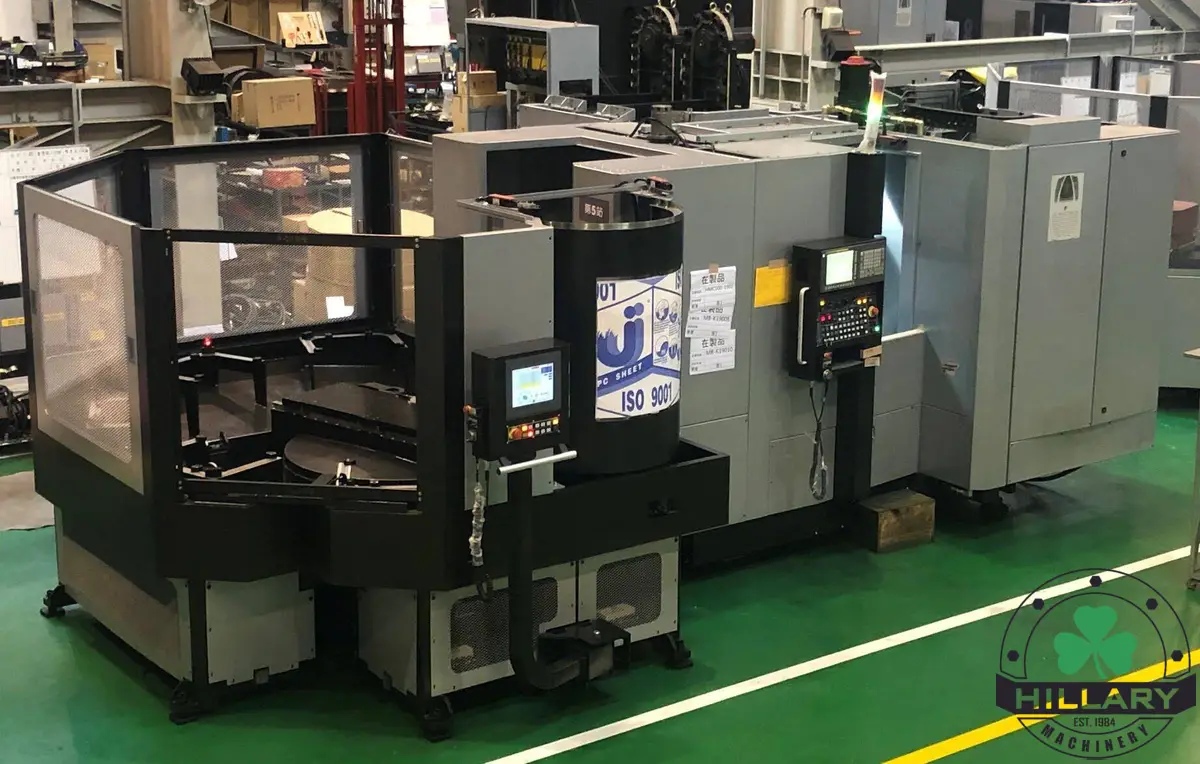

JTEKT/TOYODA HMC500 HORIZONTAL MACHINING CENTER

Machine Envelope and Travels
Column Cross Travel (X Axis) 25.2” (640 mm)
Spindle Head Vertical Travel (Y Axis) 24” (610 mm)
Work Table Travel (Z Axis) 26.77” (680 mm)
Max Workpiece Swing (see restriction drawing) ø 29.5" X 35.43" (ø 750 X 900 mm)
Rapid Traverses (X, Y and Z Axes) 2,362 ipm (60 M / min)
Spindle Nose to Rotary Table Center 2.36" ~ 29.1" (60 ~ 740 mm)
Spindle Center to Top Face of Pallet 1.97" ~ 25.98" (50 ~ 660 mm)

Machine Pallet
Pallet Size 19.7" x 19.7" (500 x 500 mm)
NC Table (4th Axis) 360,000 Positions
Maximum Work Load on the Pallet 1100 lbs. (500 kg)
Pallet Height from Floor 43.31" (1,100 mm)

Spindle Specifications
Spindle Speed 50 ~ 15,000 RPM
Spindle Ceramic Bearing Inside Diameter 80mm
Spindle Drive Motor 20/25/30 HP

Tooling and Magazine
Spindle Nose Taper Big Plus CAT Flange (BCV#40)
Type of Stored Tool CAT #40 V-Flange / Pullstud: MAS Type I P40T
Standard Tool Storage Capacity Sixty (60)
Maximum Tool Size (Diameter x Length) (Diameter x Length) ø3.15" x 15.7" (ø80 x 400
mm) Maximum Tool Weight 17.6 lbs. (8 kg)
Tool to Tool Change Time Max. 2.5 sec
Tool Selection Random

Machine Dimensions and Requirements
Power Capacity (208V) 51 kVA
Standard Floor Space Refer to Layout
Standard Net Weight* 25,350 lbs. (11,500 kg)

All specifications are subject to change without prior notice
Verification of technical changes may be confirmed after receipt of order
*estimated
