JTEKT/TOYODA FH630SX-i HIGH SPEED HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionNew
New
FANUC 31iMB CNC Machine Control with TOYOPUC TOUCH HMI
FEM Analyzed Cast Iron Base and Column for Unsurpassed Vibration Dampening
Solid-Core Double Lead Ball Screws with Active Thermal Compensation
Three Point Machine Leveling for Long Lasting Machine Geometry
Dual Z-Axis and Y-Axis Ball Screws to Support Heavy Cutting Conditions
Six Spindle Carriage Guide Trucks Provide Unsurpassed Cutting Support
Industry Best 2” Z Axis Dead Band Allows for Tool Length Reduction
Machine Weight of 43,200lbs Engineered with FEM Analysis to Reduce Vibration
Robust Full Contact Table Clamping Plate with Dual Cylinder Actuation
55mm Wide Roller Guides and 50mm Diameter Dual Lead X-Axis Ball Screw

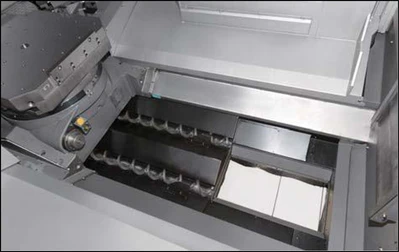

Center Through Chip Removal Designed for Highly Efficient Chip Management
Recirculating Coolant Supply System including Chip Conveyor
Machine Envelope and Travels
Column Cross Travel (X Axis) 41.33” (1,050 mm)
Spindle Head Vertical Travel (Y Axis) 35.43” (900 mm)
Work Table Travel (Z Axis) 41.33” (1,050 mm)
Max Workpiece Swing ø 46.06" X 49.21" (ø 1,170 X 1,250 mm)
Rapid Traverses (X, Y and Z Axes) 2,362 ipm (60 M / min)
Spindle Nose to Rotary Table Center 1.96" ~ 41.34" (50 ~ 1,050 mm)
Spindle Center to Top Face of Pallet 3.94" ~ 39.37" (100 ~ 1000 mm)
Machine Pallet
Pallet Size 24.80" x 24.80" (630 x 630 mm)
NC Table (4th Axis) 360,000 Positions
Maximum Work Load on the Pallet 3,300 lbs. (1,500 kg)
Pallet Height from Floor 47.24" (1,200 mm)
Spindle Specifications
Spindle Speed 50 ~ 8,000 RPM
Spindle Speed (Optional) 50 ~ 15,000 RPM
Spindle Bearing ID 8,000 RPM (Roller Type) 4.33" (110 mm)
Spindle Bearing ID 15,000 RPM (Ceramic Type) 4.72" (120 mm)
Spindle Drive Motor 74 HP (55KW)
Tooling and Magazine
Spindle Nose Taper CAT 50
Type of Stored Tool Holder: CAT #50 V-Flange / Pullstud: MAS Type I P50T
Standard Tool Storage Capacity Sixty (60)
Maximum Tool Size (Diameter x Length) ø11.81" Cylindrical / 12.6" Boring x 23.6" (ø300 / 320 x 600 mm)
Maximum Tool Weight 59.4 lbs. (27 kg)
Chip to Chip Change Cycle Time 3.7 sec
Machine Accuracy
Linear Position Accuracy (w/out scales) ± .00012" (.003 mm) full stroke
Linear Repeatability (w/out scales) ± .00008" (.002 mm)
Rotary Table Index Accuracy (w/out scales) ± 7 arc Seconds, ± 3.5 arc Seconds Repeatability
Machine Dimensions and Requirements
Power Capacity (208V) 49 kVA
Standard Floor Space 141.7" x 271.6" (3,600 x 6,900 mm)
Standard Net Weight 43,120 lbs. (19,600 kg)
