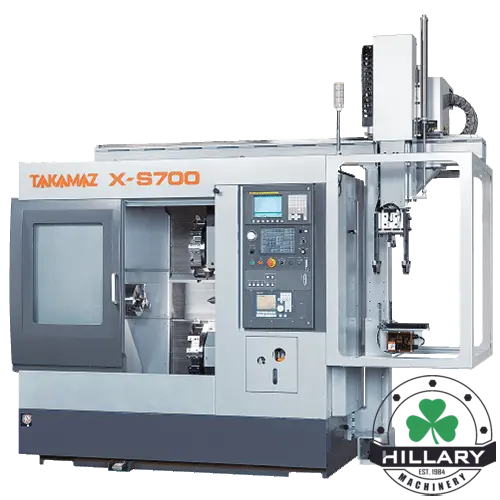

TAKAMAZ X-S700 High Productive Shaft Machine with Gantry Loader

Description

Demonstrates High Productivity Machine for Machining Shaft Configurations.
With original 1-spindle and 2-turret concept, and tailstock that is servo controlled, this machine configuration for shaft machining of various workpieces. The Z-Axis has stroke of 650mm and a Max.700mm※ long shaft machining is possible. In addition, X-Axis with a 115mm stroke, can also support crankshaft machining. Through symmetrical twin turret design, balance cutting, simultaneous left and right individual cutting are possible resulting in individual shorter cutting times of different shapes. The adoption of more rigid 10-station turret, more tooling is available. The vertical X, Z axis slides use a rigid square box-way slide, and in combination with large spindle: φ120mm bearing bore(B specification) the heavy machining on the cutting area of 2.0mm2 is made easy. ※When OD holder is used in aφ100 spindle, up and down individual cutting is possible.
