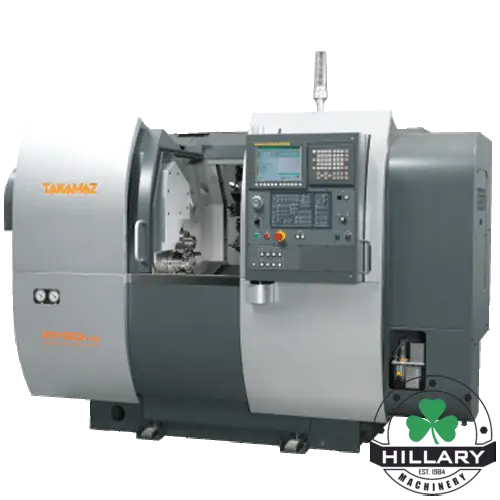

TAKAMAZ XY-120 Plus Multi-Axis Turning Center

Description

High-speed servo turret substantially cuts idle time.

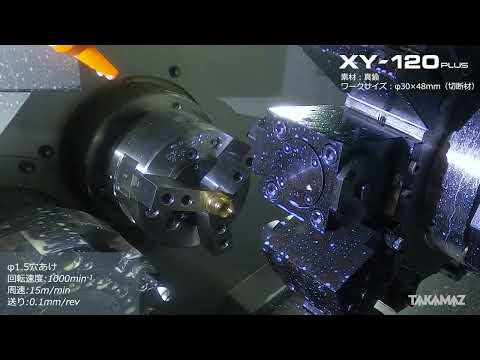

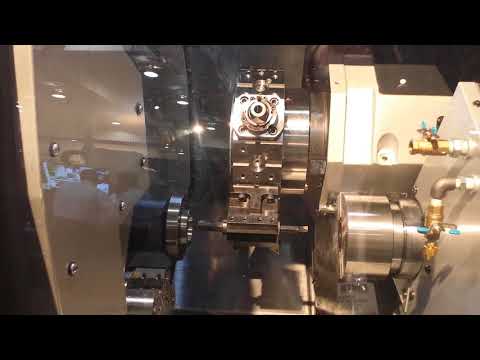

The rigidity of the 10-station drum turret used on the machine has increased through a uniform, balanced design, making it capable of continuous full operation. The turret rotation speed of 0.2 seconds per index is one of the fastest available.

New 8-inch chuck specification.

An 8-inch chuck has now been designed to complement the existing 6-inch specifications. This allows a response to more diverse needs.

The addition of rotary tools permits process integration.

The machine can be equipped with simple rotary tools capable of boring and milling on side faces.

Compact design with integral loader for high-efficiency operation.
The exceptional total balance that has been achieved by integrating the loader with the machine has lead no only to high productivity but also a broad range of other benefits including space savings and joint maintenance during after service.
