TAKAMAZ XW-130 TWIN 8" CHUCKS TWIN TURRET WITH GANTRY LOADER
Have one to sell?
ConditionNew
New

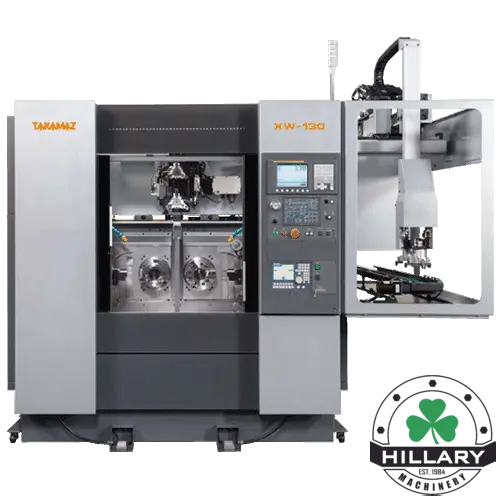

TAKAMAZ XW-130
Loader cycle that will disprove common knowledge in loading technology
This new 3-axis loader is even faster with a loading time of 6 sec.This machine is equipped with high speed shutter,reducing shutter open/close time into half(with open/close <0.5 sec).Aminimum 18 sec cycle time (OP1-2)is achieved with this new loader cycle idea.
Pursuit of both cutting capability and precision
The adoption of the box sliding for the slide,φ100mm maximum spindle diameter and 11/7.5kW moter.Installation of the spindle base cooling system for stable machining precision.
Lower center of gravity・Space-saving design
A compact 1,890mm width machine design ensuring a 150mm X-axis and 160mm Z-axis slide stroke with a 1,000mm spindle center height. Easy access to the spindle chuck and work turn device and easy change-over.
2 4,000RPM; 11kw/30min; A2-6 Spindle Nose Included
1 FANUC 0i-TD Control Included

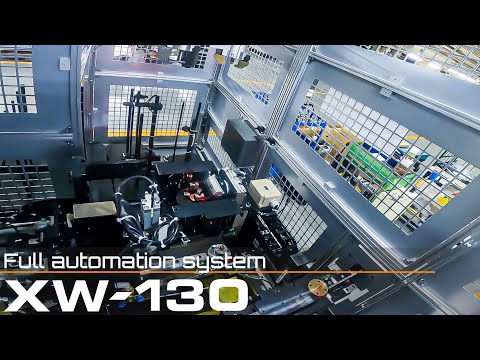

1 ∑GTH150 Gantry Loading System with Dedicated L Hand Included
2 8 Station Turret - X/Z Axis Included
1 Spindle Cooling Device Included
2 Hydraulic Chucking Cylinder Included
2 Chuck Clamp/Unclamp Confirmation Sensor Included
2 Thread Cutting Device (Spindle Encoder) Included
2 Air Blow Device; Front Side Included
1 Splashguard Door with Safety Interlock Included
1 Signal tower light 3 colors (red, yellow, & green) Included
1 LED Machine Light (Internal) Included
1 Coolant System (160 lit.) Included
1 Parts Preset Counter Included
1 Station Stocker (16 position) Part Diameter 150MM (IN/OUT) Included
1 Chip Conveyor (Belt Type); Rear Mounted Included
4 Boring Holder (1.50" ID) Included
4 OD Holder (1" Square Shank) (2 ea. Left & 2 ea. Right hand style) Included
5 Round Hole Bushing Included
1 Service Tool Kit Included
1 Instruction Manuals Included
1 Transfer Turn Device (OP-10/20) Included
1 Safety Fencing including door interlocks and access door Included
1 Extended Gantry Rail (4FT from each side of machine) Included
