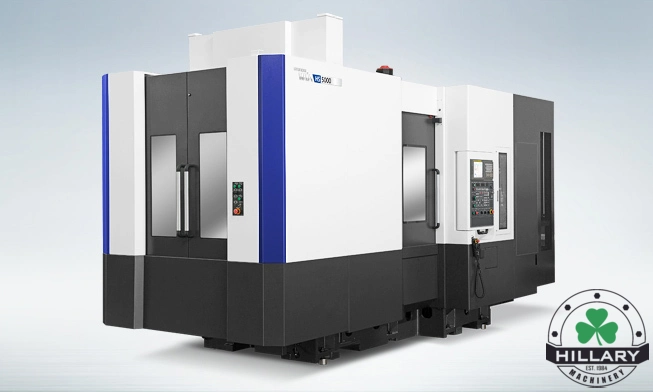

Hyundai-Wia HS5000i Horizontal Machining Center w/ 6 Position Pallet Pool
Have one to sell?
ConditionNew
New
The HS5000i is manufactured using the latest state-of the-art manufacturing technology and is one of the most versatile members of HYUNDAI-WIA’s outstanding line of CNC Horizontal Machining Centers. The HS series has been designed to meet the demanding requirements found in today metal working market.
CAPACITY:
X axis travel 850mm (33.5”)
Y axis travel 700mm (27.6”)
Z axis travel 750mm (29.5”)
Pallet size 500mm x 500mm (19.7" x 19.7")
Number of pallets 2
Allowable load 500kg (1,102 pounds)
Maximum Part Swing (Diameter x Height) Ø 780mm (30.7”) x H980mm (38.6”)
Indexing 1 degree
Pallet Index Type (25) M16
Pallet Changing Method Direct Turn
Pallet Change Time 12 seconds
SPINDLE:
Table center to spindle nose 50 - 750mm (2” – 29.5”)
Table top to spindle center 150mm – 900mm (5.9” – 35.4”)
Spindle taper BCV #40
Pull Stud (Retention Knob) 45°
Spindle speed range 0 - 12,000 RPM
A.C. spindle motor (30min) 25kW (34 HP)
Spindle torque (30 min) 167N.m (123.1 lbs.ft)
AUTOMATIC TOOL CHANGER:
Number of Tools 60 (80 / 120 opt)
Tool Shank BCV #40
Max. Tool Dia. 75mm (3.0")
with empty adjacent pockets 140mm (5.5")
Max. Tool Length 450mm (17.7")
Max. Tool Weight 8kg (17.6 lbs.)
Tool change time (tool to tool) 1.1seconds
Tool change time (chip to chip) 3.5 seconds.
MOTION:
X, Y and Z axis rapid traverse rate 50m/min (1,968 IPM)
Cutting Feed 1mm~40,000mm/min (.04~1,574 IPM)
Least command increment .001mm (.0001")
Ball Screw Size (X, Y, Z axis) 40mm (1.57”)
GENERAL:
Machine Height 3,097mm (121.9 inches)
Floor Space (L) with chip conveyor & tank 4,089mm (161 inches)
Floor Space (W) with coolant tank 5,338mm (210.2 inches)
Approximate machine weight 15,000kg (33.069 lbs.)
Power required 40 kVA / 157 amp @ 220V
Voltage required 205 - 235 Volts / 3 Phase
Specifications are subject to change for improvement without notice.
6PPL-No of Pallet 6ea(Machine 2ea, PPL 4ea)
Fanuc 32i-B Control
12,000 RPM built-in spindle
Powerful 25kW (34 HP) spindle motor
High precision spindle with double row angular contact ball bearings
BCV #40 spindle taper
1 Degree Table (Optional 0.001 Degree)
Oil jacket spindle cooler
1,000 PSI through the spindle coolant
Shower Coolant
Massive Meehanite cast iron bed
Large Linear Roller Guide Ways
Table clamping by large diameter Curvic coupling
Double Pre-Tensioned Ball screws
Fast 50m/min (1.968 IPM) X,Y and Z rapid traverse
Rigid tapping
Custom Macro (User Definable)
Cam Type Double Arm ATC 60 Tools
Automatic pallet changer
Qualified edge locators
Pallet clamping by 4-cone type pins
Pallet rotation at pallet loading station
Portable Manual Pulse Generator
Program and data protection key switch
Telescopic way covers
Full enclosure splash guard
Dual screw type conveyors
Chip Conveyor (47” discharge height)
Flood coolant with large separate coolant tank
Work light
3 color tower signal light
Instruction manual, parts list, and electrical drawings
Fanuc operator and maintenance manuals
Two-year machine warranty: Parts and 1 Year Labor
Two-year control and motor warranty: Parts and Labor
