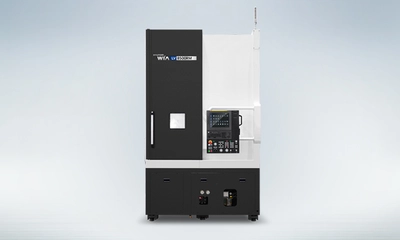

The HYUNDAI WIA LV8500R/L (RM/RL) series of Vertical Turning Center features a Box Type Column. This single piece, square type column offers the ultimate stability by absorbing vibration and eliminating twist. This combination delivers superior precision even during heavy cutting. Also available in a milling configuration having live tooling and C axis: Live Tooling (M)
■ FEATURES [LV800RM/LM]
• Fanuc 32i-B Control
• Fanuc Alpha spindle drive and Alpha X / Z servo motors
• Ø31.5” (Ø800mm) Max. turning diameter
• 31.5” (800mm) turning length
• Powerful 50Hp (37kW) spindle motor (30min)
• Spindle Torque 1,932 lbs.ft (2,619 N.m) at 177 RPM
• 18” 3-jaw chuck / Max. 2,000 RPM Spindle
• A2-11 Spindle nose
• Gear box attached spindle motor + belt
• High torque spindle for 24” chuck (opt.)
Power: 50 HP (37kW) (30min)
Torque: 2115.3 lbf.ft (2,868 N.m) at 177 RPM
RPM: Max. 2,000
A2-15 spindle nose
• Mill Turret spindle [LV800RM/LM]
Power: 40 HP (30kW) spindle motor (30min)
Torque: 1,194 lbf.ft (1,619 N.m) at 177 RPM
Belt Dirven type
• Live Tool: 3,000 rpm [LV800RM/LM]
10 HP (30min) / 35.3 lbf.ft torque at 1,500 rpm
• Travel (X/Z): 17.3” / 31.5” (440 / 800 mm)
• Rapid speed: 787 IPM (20m/min) X and Z axis
• Box guideways
• Manual Tool setter (Attachable)
• Tool size: □1.3” / Ø2.5” (□32mm / Ø63mm)
• 87 PSI coolant system [290 PSI_Opt.]
• Double Pre-Tensioned Ball screws
• Chip Conveyor (48” discharge height)
• 1 color tower signal light
• Full enclosure splash guard
