HYUNDAI-WIA | HS8000 II | 800MM | HIGH SPEED | DUAL PALLET | HORIZONTAL MACHINING CENTER
Have one to sell?
ConditionNew
New
Next Generation High Efficiency Machining Center; High Rigidity Box-type Structure; A symmetrical structure design with the center of gravity of Z-axis and transfer axis matching; Easy chip disposal with direct chip discharging structure; Best-in-class rapid traverse rate of 50m/min (1969 ipm); Machining of the largest workpiece in its class; ATC design capable of attaching the largest tools in its class
Pallet
Pallet Size (L×W) mm(in) 2 - 800×800 (31.5″×31.5″)
Maximum Load Capacity kgf(lbf) 2 - 2,000 (4,409)
Maximum Working Size mm(in) Ø1,470×H1,600 (Ø57.9″×H63″)
Min. Indexing Angle deg 1° [0.001°]

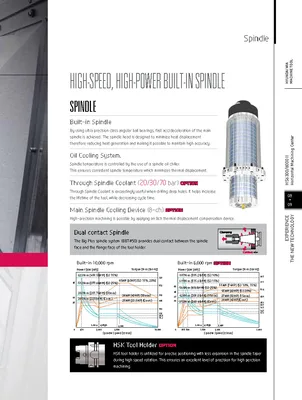

Spindle
Spindle Taper - BBT50 [HSK-A100]
Spindle RPM r/min 10,000 [6,000]
Spindle Motor Output (Max./Cont.) kW(HP) 45/25 (60/33.5) [55/30 (74/40)]
Spindle Torque (Max./Cont.) N·m(lbf·ft) 623/305 (459.5/225) [807/353 (595.2/260.4)]
Spindle Driving Method - Built -in
Feed
Travel (X/Y/Z axis) mm(in) 1,400/1,200/1,370 (55.1″/47.2″/53.9″)
Distance from Table Top to Sp. Center mm(in) 75 ~ 1,275 (3″/50.2″)
Distance from Table Center to Sp. Nose mm(in) 150 ~ 1,520 (5.9″/59.8″)
Rapid Traverse Rate (X/Y/Z) m/min(ipm) 50/50/50 (1,969/1,969/1,969)
Slide Type - ROLLER GUIDE

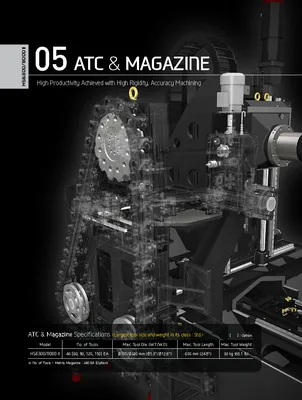

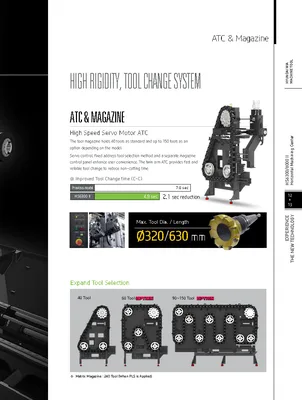

ATC
Number of Tools EA 90 [40, 60, 120, 150] [Matrix : 240 이상]
Tool Shank - BBT50 [HSK-A100]
Max. Tool Dia. (W.T/W.O) mm(in) Ø135/Ø320 (Ø5.3″/Ø12.6″)
Max. Tool Length mm(in) 630 (24.8″)
Max. Tool Weight kg(lb) 30 (66.1)
Tool Selection Method - Fixed Address
Tool Change Time C-C 5.4 SEC
APC
No. of Pallet EA 2
APC Type - Direct TURN
Pallet Change Time sec 16
Tank Capacity
Coolant Tank ℓ(gal) 680 (179.6)
Lubricating Tank ℓ(gal) 4 (1.06)
Hyd. Tank Unit ℓ(gal) 45 (11.9)
Power Supply
Air Consumption (0.5MPa) ℓ/min(gal/min) 450 (118.9)
Electric Power Supply KVA 57
Thickness of Power Cable Sq Over 53
Voltage V/Hz 220/60 (200/50*)
Machine
Floor Space (L×W) mm(in) 4,379×6,850 (172.4″×269.7″) (40 Tool)
Height mm(in) 3,817 (150.3″)
Weight kg(lb) 27,000 (59,525)
NC Controller - FANUC 31i-B
Specifications are subject to change for improvement without notice.
