Hyundai-Wia HS5000i 500mm 12K RPM High Speed Dual Pallet Horizontal Machining Center

• Fanuc 32i-B Control
• 12,000 RPM built-in spindle
• Powerful 25kW (34 HP) spindle motor
• High precision spindle with double row angular contact ball bearings
• BCV #40 spindle taper
• 1 Degree Table (Optional 0.001 Degree)
• Oil jacket spindle cooler
• 1,000 PSI through the spindle coolant
• Shower Coolant
• Massive Meehanite cast iron bed
• Large Linear Roller Guide Ways
• Table clamping by large diameter Curvic coupling
• Double Pre-Tensioned Ball screws
• Fast 50m/min (1.968 IPM) X,Y and Z rapid traverse
• Rigid tapping
• Custom Macro (User Definable)

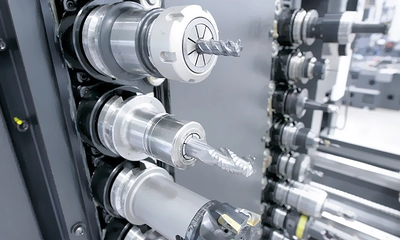

• Cam Type Double Arm ATC 60 Tools
• Automatic pallet changer with (2) Tapped pallets
• Qualified edge locators
• Pallet clamping by 4-cone type pins
• Pallet rotation at pallet loading station
• Portable Manual Pulse Generator
• Program and data protection key switch
• Telescopic way covers
• Full enclosure splash guard
• Dual screw type conveyors
• Chip Conveyor (47” discharge height)
• Flood coolant with large separate coolant tank
• Work light
• 3 color tower signal light
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
