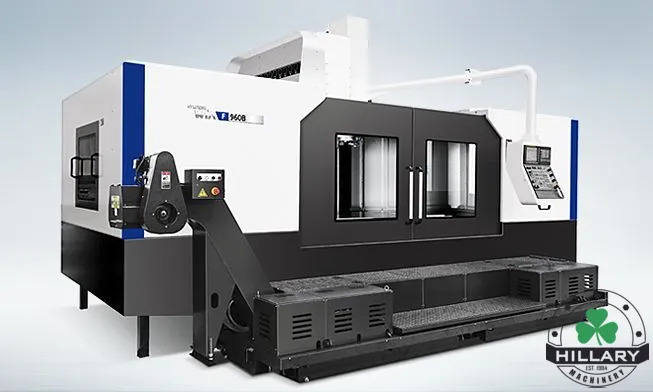

Wia F960B Heavy Duty Box Way CAT50 Vertical Machining Center
Have one to sell?
ConditionNew
New
The F960B Vertical Machining Center, designed by WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
• Hyundai Wia Fanuc i Control
• 8,000 RPM spindle
• Powerful 22 kW (29.5 HP) 2 step gear driven spindle
• BBT # 50 Spindle Taper
• All Box Guide Ways
• 30 ATC
• Oil jacket spindle cooler
• 435 PSI through the spindle coolant.
• Bed Flushing Coolant
• Internal Spiral Conveyor
• Left Side Hinge Chip Conveyor (38” discharge height)
• Auto Power off
• Massive Meehanite cast iron bed
• Double Pre-Tensioned Ball screws
• Fast 16m/min (630 IPM) X,Y and 20m/mim(787 IPM) Z axis
• High precision spindle with double row angular contact ball bearings
• Custom Macro (User Definable)
• Portable Manual Pulse Generator
• Telescopic way covers
• Flood coolant with large separate coolant tank
• Work light
• 3 color tower signal light
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
The F960B Vertical Machining Center, designed by WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
Imperial
| SPINDLE TAPER | CAT50 (BIG PLUS) |
| X Travel | 96.5" |
| Y Travel | 37.8" |
| Z Travel | 33.5" |
| TABLE (L) | 106.3" |
| TABLE (W) | 37.4" |
| SPINDLE SPEED | 8,000 RPM |
| SPINDLE HP | 30 hp |
| MAGAZINE CAPACITY | 30 |
| Control | CNC (FANUC) |
• Hyundai Wia Fanuc i Control
• 8,000 RPM spindle
• Powerful 22 kW (29.5 HP) 2 step gear driven spindle
• BBT # 50 Spindle Taper
• All Box Guide Ways
• 30 ATC
• Oil jacket spindle cooler
• 435 PSI through the spindle coolant.
• Bed Flushing Coolant
• Internal Spiral Conveyor
• Left Side Hinge Chip Conveyor (38” discharge height)
• Auto Power off
• Massive Meehanite cast iron bed
• Double Pre-Tensioned Ball screws
• Fast 16m/min (630 IPM) X,Y and 20m/mim(787 IPM) Z axis
• High precision spindle with double row angular contact ball bearings
• Custom Macro (User Definable)
• Portable Manual Pulse Generator
• Telescopic way covers
• Flood coolant with large separate coolant tank
• Work light
• 3 color tower signal light
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
