Hyundai Wia SE2200LY 8" Chuck Y-Axis Turning Center
Have one to sell?
$99,900.00 USD
ConditionNew
New

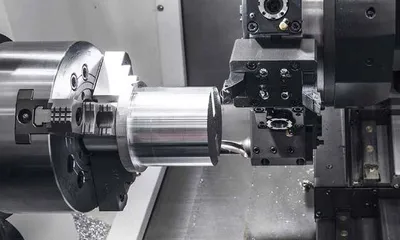

The SE2200LY compact live tool Y-axis turning center is designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
• Hyundai Wia Fanuc - Smart Plus controller
• Max. 4500 rpm Belt driven spindle
• Powerful 20.1 HP (15 kW) spindle motor
• Spindle orientation
• Double Pre-Tensioned Ball screws
• Fast 1,181 IPM (30m/min) X, 1,417 IPM (36m/min) Z and 394 IPM (10m/min) Y axis rapid speed
• Manual Tool Setter
• Auto Part Catcher
• Right Side Hinge Type Chip Conveyor
• 3 color tower signal
• LNS bar feeder interface
• Coolant Tank 52.8 gal (200 ℓ)
• Standard Hyd. Unit - 35Bar (508 psi) / 5.3 gal (20 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
