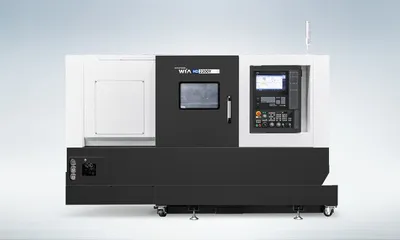

Hyundai-Wia HD2600Y 10" Chuck Y-Axis Box Way Turning Center
Have one to sell?
ConditionNew
New
The HD2600Y features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value
• Hyundai Wia Fanuc i control
• 4,000 RPM [3,500rpm ON HD2600Y]
• Powerful belt spindle 25HP (18.5kW)
• Spindle orientation
• 87 PSI(6bar) multi-stage coolant pump
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X, 1,181 IPM (30m/min) Z and 394 IPM (10m/min) Y axis rapid speed
• Manual Tool Setter
• Programmable tail stock
• MT #4 Live Center
• Auto Part Catcher
• Right Side Hinge Type Chip Conveyor
• 3 color tower signal
• LNS bar feeder interface
• 52.8 Gal (200 ℓ) Coolant Tank
• Standard Hyd. Unit - 35Bar (508 psi) / 6.34 Gal(24 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
