Hyundai Wia L2600Y 10" Chuck Y-Axis BOX WAY Turning Center
Have one to sell?
ConditionNew
New

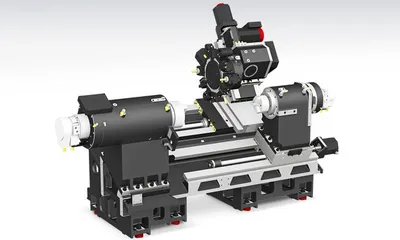

The L2600Y/LY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value.
• Hyundai Wia Fanuc i control
• 4,000 RPM
• Powerful built-in spindle 30HP (22kW)
• Spindle orientation
• 87 PSI multi-stage coolant pump
• Double Pre-Tensioned Ball screws
• Fast 1,181 IPM (30m/min) X, Z and 394 IPM (10m/min) Y axis
• Auto Tool Setter
• Programmable tail stock (Tow-along type)
• MT #5 Center
• Auto Part Catcher(Main)
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal
• LNS bar feeder interface
• 77 Gal (290 ℓ) / [85 Gal (320 ℓ) ON L2600LY] Coolant Tank
• Standard Hyd. Unit - 35Bar (507 psi) / 3.7 Gal(14 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
