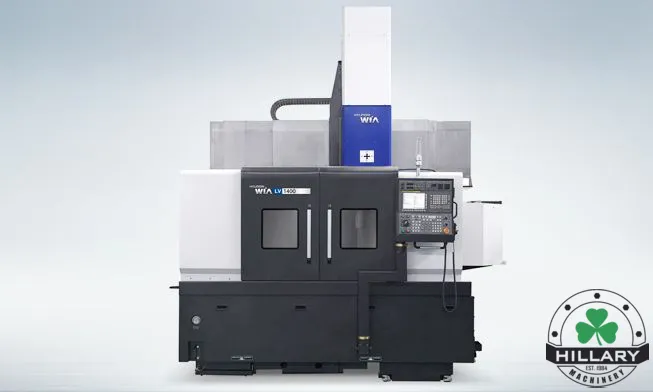

Hyundai Wia LV1400 40" Chuck RAM Type Vertical Turning Centers
Have one to sell?
ConditionNew
New
The LV1400 series vertical turning centers are designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
• Fanuc 32i-A Control
• 492 RPM spindle
• 39.4” chuck (3 jaws hydraulic)
• Powerful 50 Hp (37 kW) two-step geared table
• Chip Conveyor
• 12 position ATC magazine
• Manual Guide i
• Fast 472 IPM (12m/min) X, and Z axis
• Rigid tapping
• Attachable Manual Tool-Setter
• 6Bar / 87psi High Pressure Coolant
• 137.4 Gallon (520 ℓ) Coolant Tank
• Standard Hyd. Unit - 70Bar (1,000psi) / 6.34 gal (24 ℓ)
• Chip Conveyor (40” discharge height)
• 3 color tower signal light
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
The LV1400 series vertical turning centers are designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
Imperial
| CHUCK SIZE | 40" |
| SWING | 57.1" |
| TURNING DIAMETER | 55.1" |
| MACHINING LENGTH | 33.5" |
| MAX RPM | 492 RPM |
| POWER | 50 hp |
| Control | CNC (FANUC) |
• Fanuc 32i-A Control
• 492 RPM spindle
• 39.4” chuck (3 jaws hydraulic)
• Powerful 50 Hp (37 kW) two-step geared table
• Chip Conveyor
• 12 position ATC magazine
• Manual Guide i
• Fast 472 IPM (12m/min) X, and Z axis
• Rigid tapping
• Attachable Manual Tool-Setter
• 6Bar / 87psi High Pressure Coolant
• 137.4 Gallon (520 ℓ) Coolant Tank
• Standard Hyd. Unit - 70Bar (1,000psi) / 6.34 gal (24 ℓ)
• Chip Conveyor (40” discharge height)
• 3 color tower signal light
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
