Hyundai Wia LV1100R 40" Chuck Vertical Turning Centers
Have one to sell?
ConditionNew
New
The LV1100R series vertical turning centers are designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
• Fanuc 32i-B Control
• 630 RPM spindle
• 40” chuck
• Powerful 87.2 Hp (65 kW) spindle motor Spindle orientation
• Spindle orientation
• 87 PSI high pressure coolant system
• Manual Guide i
• Fast 945 IPM (24m/min) X, and Z axis
• Manual Q-Setter
• Bed Flushing
• Two steps Hydraulic Chuck Pressure Device

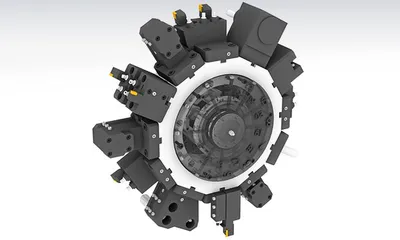

• BMT 85P 12 Station Turret [LV1100RM]
• Rear Chip Conveyor (49” discharge height)
• 3 color tower signal light
• Rigid tapping
• 111 Gal((420 ℓ ) Coolant Tank
• Standard Hyd. Unit - 70Bar / 1,000psi (6.3 gal)
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts: and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
