Hyundai Wia L800LMD Series 32" Big Bore Box Way Live Tool Geared Spindle Turning Center

• Fanuc 32i Series Control
• 500 RPM (No Chuck)

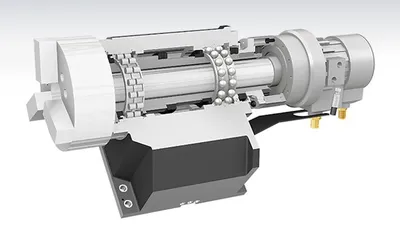

• 2 Step gear box embedded head stock
• Powerful 60HP (45kW) spindle motor
• Spindle orientation
• 87psi High Pressure Coolant
• Double Pre-Tensioned Ball screws
• Fast 472 IPM (12m/min) X, and 630 IPM (16m/min) Z axis
[472 IPM (12m/min) X and Z axis on L800LD/LMD]
• Manual Tool Setter
• 12 Station Turret
• Programmable built-in tail stock (Tow-along type)
• Standard Dead Center (MT #6)
• Steady Rest Preparation: (1) 800A/MA , [(2) 800LD/LMD]
: Customer needs to purchase a steady rest which is being required for the part
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• Rigid tapping
• 151 Gal (570 ℓ) / [203 Gal(770 ℓ) on L800LD/LMD] Coolant Tank
• Standard Hyd. Unit - 60Bar (870psi) /16.6 Gal (63 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
