HYUNDAI WIA L300MSA 10" Chuck Live Tool Box Way Sub-Spindle Turning Center
Have one to sell?
ConditionNew
New

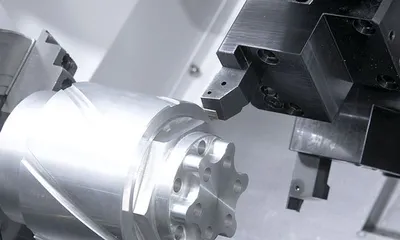

The Hyundai Wia L300 Series box way turning centers are designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
• Fanuc 32i Series controller
• 3,500 RPM main and 4,000 RPM sub spindle
• Powerful 30HP (22kW) & 15HP (11kW) spindle motor
• Belt driven Spindle
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 787 IPM (20m/min) X, 945 IPM (24m/min) Z and 787 IPM (20m/min) ZB axis
• Manual Tool Setter
• 12 Station Turret
• Programmable sub spindle part ejector (spring type)
• Programmable part catcher (Sub)
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 58.1 Gal (220 ℓ) Coolant Tank [73.1Gal (270liter)]
• Standard Hyd. Unit - 35 Bar (508 psi) / 5.3 Gal(20 ℓ) Tank
• Two-year machine warranty: Parts: and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
