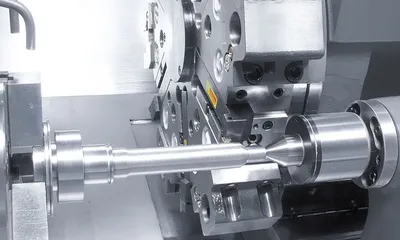

HYUNDAI WIA L300LA 10" Chuck 2 Axis Box Way Turning Center

• Hyundai Wia Fanuc i control
• 3,600 RPM spindle
• 2 Step gear box embedded head stock
• 30HP (22kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 787 IPM (20m/min) X, and 945 IPM (24m/min) Z
• Manual Tool Setter
• 12 Station Turret
• Programmable tail stock (Tow-along type)
• MT #5 Live Center
• Part Catcher Preparation
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 58.1 Gal (220 ℓ) Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 5.3 Gal(20 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts: and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
