Hyundai Wia L230LA 8" Chuck 2 Axis Long Bed Turning Center
2-Axis CNC Lathes
.jpg)
.jpg)
The Hyundai Wia L230A compact turning center is designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
| CHUCK SIZE (in) | 8 |
| BAR CAPACITY (in) | 2.6 |
| SWING OVER BED | 23.6 |
| MAX TURNING DIAMETER (in) | 14 |
| MAX TURNING LENGTH (in) | 22 |
| TAILSTOCK | Yes |
| SPINDLE SPEED | 4000 |
| SPINDLE NOSE | A2-6 |
| SPINDLE MOTOR HP | 20 |
| Control | CNC (FANUC) |
• Hyundai Wia Fanuc i control
• 4,000 RPM spindle
• Powerful 20HP (15kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system

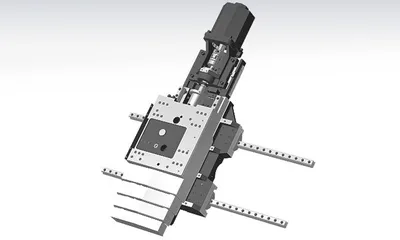

• Double Pre-Tensioned Ball screws
• Fast 1,417 IPM (36m/min) X, and Z axis
• Auto Tool Setter
• Semi Programmable tail stock (One touch type)
• MT #4 Live Center
• Parts Catcher
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 40 Gal (150 ℓ) / [71 Gal(270 ℓ)] Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 4.8 Gal(18 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts / 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
