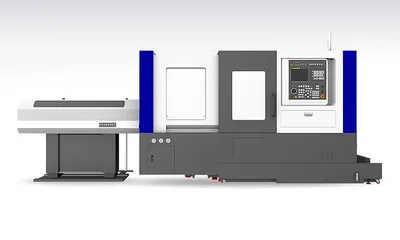

Hyundai Wia L230A 8" Chuck 2 Axis Turning Center

• Hyundai Wia Fanuc i control
• 4,000 RPM spindle
• Powerful 20HP (15kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 1,417 IPM (36m/min) X, and Z axis
• Auto Tool Setter
• Semi Programmable tail stock (One touch type)
• MT #4 Live Center
• Parts Catcher
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 40 Gal (150 ℓ) / [71 Gal(270 ℓ)] Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 4.8 Gal(18 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts / 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
