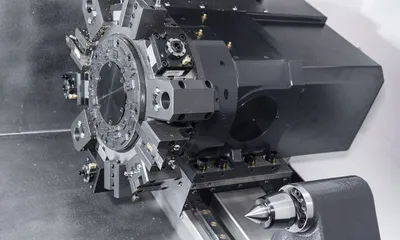

Hyundai Wia SE2200LA 6" Chuck Long Bed 2 Axis Turning Center
2-Axis CNC LathesThe SE2200LA compact turning center is designed by Hyundai WIA with years of expertise and using the very latest technology, maximizes productivity while maintaining rigidity and accuracy.
CHUCK SIZE (in) | 6 |
BAR CAPACITY (in) | 2 |
SWING OVER BED | 23.6 |
MAX TURNING DIAMETER (in) | 13.8 |
MAX TURNING LENGTH (in) | 22 |
TAILSTOCK | Yes |
SPINDLE SPEED | 6000 |
SPINDLE NOSE | A2-5 |
SPINDLE MOTOR HP | 20 |
Control | CNC (FANUC) |
• Hyundai Wia Fanuc i series - Smart Plus controller
• Max. 6,000 RPM Belt driven spindle
• Powerful 20.1HP (15 kW) spindle motor
• Spindle orientation
• 87 PSI high pressure coolant system
• Double Pre-Tensioned Ball screws
• Fast 1,181 IPM (30m/min) X and 1,417 IPM (36m/min) Z axis ripid traverse
• Manual Tool Setter
• Parts Catcher
• Right Side Hinge Type Chip Conveyor (37” discharge height)
• 3 color tower signal light
• LNS bar feeder interface
• Rigid tapping
• 39.6 gal (150 ℓ) Coolant Tank
• Standard Hyd. Unit - 35 Bar (508 psi) / 4 gal (15 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts / 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
