Hyundai Wia L500LMD 21"-24" Chuck 10.8" Big Bore Heavy Duty Live Tool Horizontal Turning Center
Have one to sell?
ConditionNew
New
The L500LMD features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
• Fanuc 32i-B Control
• 1,500 RPM
• 2 Step gear embedded head stock
• Powerful 60HP (45kW) spindle motor
• Spindle orientation
• 87psi High Pressure Coolant Spindle
• Double Pre-Tensioned Ball screws
• Fast 787 IPM (20m/min) X, and 709 IPM (18m/min) Z axis
• Auto Tool Setter
• 12 Station Turret

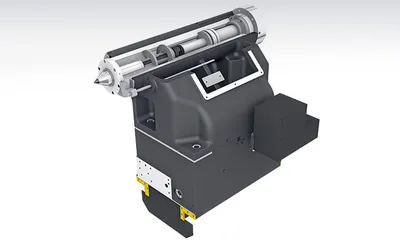

• Programmable built-in tail stock (Tow-along type)
• MT #5 Dead center
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• (1) Steady Rest Preparation
• Manual Guide i
• Rigid tapping
• 132 Gal (500 ℓ) Coolant Tank
• Standard Hyd. Unit - 60Bar (870psi) / 5.3 Gal(20 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
