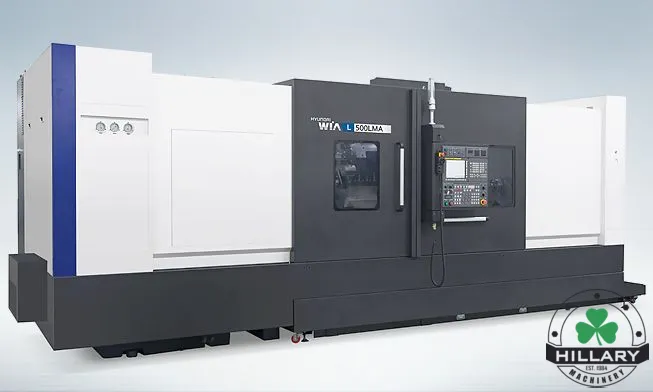

Wia L500LD 21"-24" Chuck 10.8" Big Bore Heavy Duty Horizontal Turning Center
Have one to sell?
ConditionNew
New
The Wia L500LD Big Bore CNC turning center features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
• Fanuc 32i-B Control
• 1,500 RPM
• 2 Step gear embedded head stock
• Powerful 60HP (45kW) spindle motor
• Spindle orientation
• 87psi High Pressure Coolant Spindle
• Double Pre-Tensioned Ball screws
• Fast 787 IPM (20m/min) X, and 709 IPM (18m/min) Z axis
• Auto Tool Setter
• 10 Station Turret
• Programmable built-in tail stock (Tow-along type)
• MT #5 Dead center
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• (1) Steady Rest Preparation
• Manual Guide i
• Rigid tapping
• 132 Gal (500 ℓ) Coolant Tank
• Standard Hyd. Unit - 60Bar (870psi) / 5.3 Gal(20 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
The Wia L500LD Big Bore CNC turning center features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guideways offer improved rigidity due to the increase surface contact with the guideway and can applicable for a variety of applications.
Imperial
| CHUCK SIZE (in) | 24 |
| BAR CAPACITY (in) | 10.0 |
| SWING OVER BED | 40.0 |
| MAX TURNING DIAMETER (in) | 28.0 |
| MAX TURNING LENGTH (in) | 83 |
| TAILSTOCK | Yes |
| SPINDLE SPEED | 1500 |
| SPINDLE NOSE | A2-15 |
| SPINDLE MOTOR HP | 60 |
| Control | CNC (FANUC) |
• Fanuc 32i-B Control
• 1,500 RPM
• 2 Step gear embedded head stock
• Powerful 60HP (45kW) spindle motor
• Spindle orientation
• 87psi High Pressure Coolant Spindle
• Double Pre-Tensioned Ball screws
• Fast 787 IPM (20m/min) X, and 709 IPM (18m/min) Z axis
• Auto Tool Setter
• 10 Station Turret
• Programmable built-in tail stock (Tow-along type)
• MT #5 Dead center
• Right Side Hinge Type Chip Conveyor (47” discharge height)
• 3 color tower signal light
• (1) Steady Rest Preparation
• Manual Guide i
• Rigid tapping
• 132 Gal (500 ℓ) Coolant Tank
• Standard Hyd. Unit - 60Bar (870psi) / 5.3 Gal(20 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts; 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
