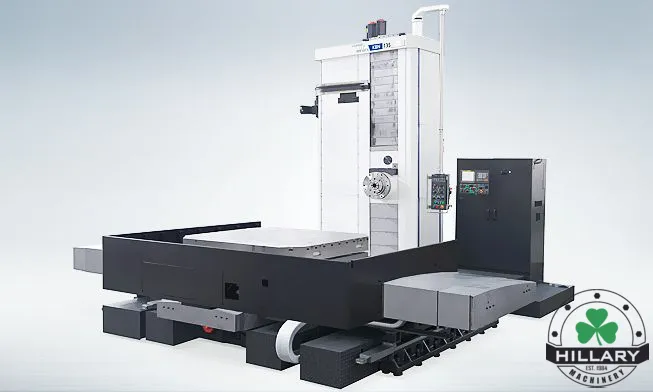

Wia KBN135 High Heavy Duty CNC Boring Mill

• Fanuc 31i-B Control
• 2,000 RPM spindle
• Powerful 26kW (35 HP) spindle with 3 speed geared head
• High precision spindle with double row angular contact ball bearings
• CAT 50 Spindle Taper
• Spindle orientation
• Oil jacket spindle cooler
• Full C axis
• 290 PSI through the spindle coolant.
• Linear and Rotary scales on all axes
• Massive Meehanite cast iron bed
• Wide induction hardened and precision ground guide ways
• Low friction fluoroplastic resin mating way surface on all axis
• Double Pre-Tensioned Ball screws
• Fast 8m/min (315 IPM) X,Y,Z and W rapid traverse
• Rigid tapping
• Custom Macro (User Definable)
• Cam Type Double Arm ATC 60 Tools
• Portable Manual Pulse Generator
• Program and data protection key switch
• Telescopic way covers
• Screw type conveyors in the machine
• Chip Conveyor (42” discharge height)
• Flood coolant with large separate coolant tank
• Work light
• 3 color tower signal light
• A-Type coolant protect cover
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
