Hyundai-Wia HD3100SY 12" Chuck Y-Axis Box Way Turning Center with 6" Sub-Spindle
Have one to sell?
ConditionNew
New

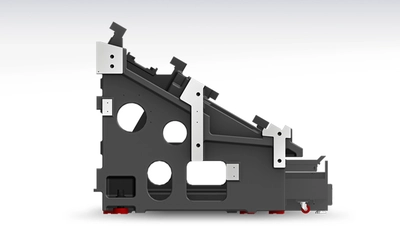

The HD3100SY features a 30° slant bed design which was developed using finite element analysis (FEA) to absorb vibration and minimize thermal growth, ensures a stable platform for powerful precise cutting capabilities. Box guide ways adopted X, Y and Z axis offer improved rigidity due to the increase surface contact with the guideway, and can applicable for a variety of applications. HYUNDAI WIA’s advanced technological features to provide exceptional value
CAPACITY:
Swing over bed Ø31.5" (Ø800mm)
Swing over carriage Ø26.4" (Ø670mm)
Max. turning diameter Ø16.5" (Ø420mm)
Max. turning length 29.9" (760mm)
SPINDLE (Main / Sub):
Chuck size 12" / 6"
Bar Capacity Ø4"
Spindle bore Ø4.5"
Spindle speed 2,800 / 4,500 rpm
Spindle nose A2-11 / A2-5
A.C. Spindle Motor (S3 25%) 34.9 / 10.1 HP (26 / 7.5 kW)
Max. spindle torque (S3 25%) 775 / 62.7 lbf.ft (1,051 / 85 N.m)
TRAVEL:
X / Y axis travel 10.4" / 4.7" (265 / 120mm)
Z / ZB axis travel 32.7" / 32.7" (830 / 830mm)
X / Y axis rapid traverse rate 945 / 394 IPM (24 / 10m/min)
Z / ZB axis rapid traverse rate 1,181 IPM / 1,181 IPM (30 / 30m/min)
X / Y axis ball screw diameter Ø1.26" / Ø1.26" (Ø32 / Ø32mm)
Z / ZB axis ball screw diameter Ø1.57” / Ø1.57" (Ø40 / Ø40mm)
X / Y axis guideway span 12.6" / 12.6" (320 / 320mm)
Z / ZB axis guideway span 17.3" / 15.4" (440 / 390mm)
TURRET (BMT65P):
Number of tools 12
Turning tool shank size 1" (□25mm)
Boring bar diameter Ø2" (Ø50mm)
Turret index time (1 step) 0.2 sec
Turret clamping force 13,575 lbs (6,158 kgf)
Live Tool Motor Power / Torque (30min) 7.5 HP (5.5 kW) / 51.6 lbf.ft (70 N.m)
Milling Tool Speed 5,000 RPM
COOLANT and HYDRAULIC SYSTEM:
Coolant tank capacity 52.8 gal (200 liter)
Hydraulic tank capacity and required oil 7.9 gal (30 liter) / VG32
Lubrication tank capacity and required oil 0.5 gal (1.8 liter) / VG68
GENERAL:
Machine Height 77.2" (1,960 mm)
Floor Space (L) with side coolant tank 178.8" (4,542 mm)
Floor Space (W) 75.1" (1,907 mm)
Machine weight 13,889 lbs (6,300 kg)
Power required 33 kVA @ 220V
Voltage Required 205 - 235 Volts / 3 Phase
Specifications are subject to change for improvement without notice.
• Hyundai Wia Fanuc - Smart Plus control
• Max. 2,800 RPM belt driven spindle
• Powerful 34.9 HP (26 kW) spindle motor
• Spindle orientation
• 87 PSI(6bar) multi-stage coolant pump
• Double Pre-Tensioned Ball screws
• Fast 945 IPM (24m/min) X, 394 IPM (10m/min) Y and 1,181 IPM (30m/min) Z and ZB axis rapid speed
• Manual Tool Setter
• Programmable tail stock
• Auto Part Catcher
• Right Side Hinge Type Chip Conveyor
• 3 color tower signal
• LNS bar feeder interface
• 52.8 gal (200 ℓ) Coolant Tank
• Standard Hyd. Unit - 35Bar (508 psi) / 7.9 gal (30 ℓ) Tank
• Instruction manual, parts list, and electrical drawings
• Fanuc operator and maintenance manuals
• Two-year machine warranty: Parts and 1 Year Labor
• Two-year control and motor warranty: Parts and Labor
